ubuntu18.04伺服器安裝教程（Ubuntu18.04搭建jumpserver）
2023-04-17 08:46:12 1

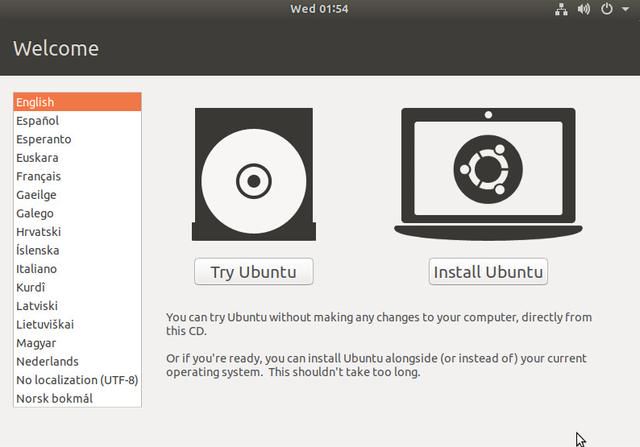

安裝 ubuntu18.04

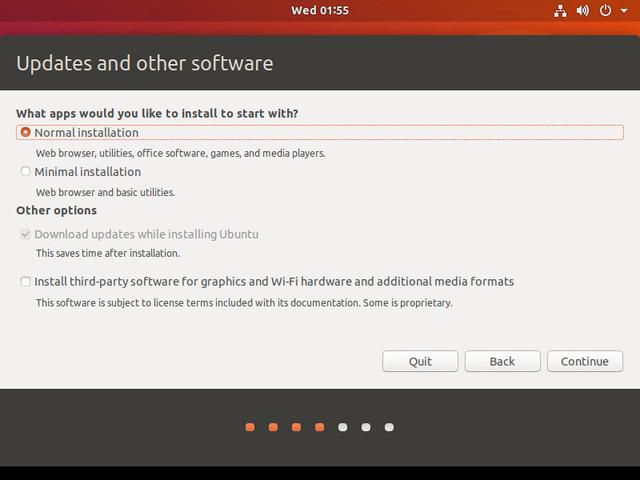

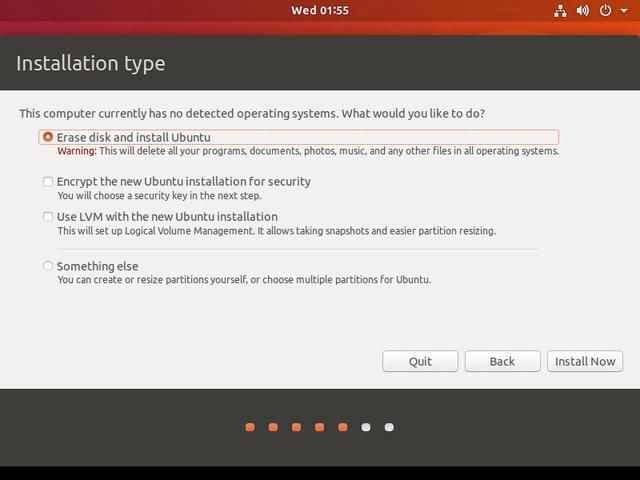

1 install默認安裝即可
jumpserver
堡壘機簡介
Jumpserver 為管理後臺, 管理員可以通過 Web 頁面進行資產管理、用戶管理、資產授權等操作,
用戶可以通過 Web 頁面進行資產登錄, 文件管理等操作koko 為 SSH Server 和 Web Terminal Server 。用戶可以使用自己的帳戶通過 SSH 或者 Web Terminal 訪問 SSH 協議和 Telnet 協議資產
Luna 為 Web Terminal Server 前端頁面, 用戶使用 Web Terminal 方式登錄所需要的組件Guacamole
為 RDP 協議和 VNC 協議資產組件, 用戶可以通過 Web Terminal 來連接 RDP 協議和 VNC 協議資產
(暫時只能通過 Web Terminal 來訪問)
Jumpserver 默認埠為 8080/tcp 配置文件 jumpserver/config.yml
koko 默認 SSH 埠為 2222/tcp, 默認 Web Terminal 埠為 5000/tcp 配置文件在 koko/config.yml
Guacamole 默認埠為 8081/tcp, 配置文件 /config/tomcat9/conf/server.xml
Nginx 默認埠為 80/tcp
Redis 默認埠為 6379/tcp
Mysql 默認埠為 3306/tcp
Protocol Server name Port
TCP Jumpserver 8080
TCP koko 2222, 5000
TCP Guacamole 8081
TCP Db 3306
TCP Redis 6379
TCP Nginx 80
1、 創建python3.6虛擬環境
2、 安裝python3.6
1 安裝依賴包：
配置apt源
sudo mv /etc/apt/sources.list /etc/apt/sources.list.bak
cd /etc/apt/sources.list.d/
安裝vim
apt-get install vim
sudo vim aliyun.list(不做也可以)
(deb http://mirrors.aliyun.com/ubuntu/ bionic main restricted universe multiverse
deb http://mirrors.aliyun.com/ubuntu/ bionic main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic main restricted universe multiverse
deb http://mirrors.aliyun.com/ubuntu/ bionic-security main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic-security main restricted universe multiverse
deb http://mirrors.aliyun.com/ubuntu/ bionic-updates main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic-updates main restricted universe multiverse
deb http://mirrors.aliyun.com/ubuntu/ bionic-proposed main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic-proposed main restricted universe multiverse
deb http://mirrors.aliyun.com/ubuntu/ bionic-backports main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic-backports main restricted universe multiverse
更新升級
設置root密碼
sudo passwd root
安裝openssh-server
Sudo apt-get install openssh-server
配置IP位址
apt-get update && apt-get -y upgrade
apt-get -y install wget gcc libffi-dev git
修改字符集
apt-get -y install language-pack-zh-hans
echo' > /etc/default/locale
重新打開終
端驗證 echo $LANG
2 安裝python3.6 (ubuntu安裝了python3.6.9)
apt-get -y install python3.6 python3.6-dev python3.6-venv
3 建立python虛擬環境
cd /opt
apt-get install python3-venv -y
python3.6 -m venv py3
source /opt/py3/bin/activate
此時提示符發生變化
4 自動載入python虛擬環境
cd /opt
git clone
echo 'source /opt/autoenv/activate.sh' >> ~/.bashrc
source ~/.bashrc
5 下載安裝Jumpserver
cd /opt
source /opt/py3/bin/activate
git clone
echo "source /opt/py3/bin/activate" > /opt/jumpserver/.env
安裝jumpserver依賴包
cd /opt/jumpserver/requirements
#首次進入會有按Y提示
apt-get -y install $(cat deb_requirements.txt)
6 安裝 Python 庫依賴
pip install --upgrade pip setuptools
pip install -r requirements.txt
# 如果下載速度很慢, 可以換國內源
(pipinstall–upgradepipsetuptools-i
pipinstall-rrequirements.txt-i )
這一步可能會報錯（執行apt-get install python3.6-dev libmysqlclient-dev）
在執行pip install -r requirements.txt，如果報超時錯誤，多執行幾遍直到完全安裝
7 安裝Redis，jumpserver使用Redis做cache
apt-get -y install redis-server
3、 安裝資料庫
1. 安裝並初始化資料庫
apt-get -y install mysql-server
初始化mysql, mysql_secure_installation
之後會有一下提示，選擇自己合適的
root@localhost:/# sudo mysql_secure_installation （修改root密碼）
Securing the MySQL server deployment.
Enter password for user root:
VALIDATE PASSWORD PLUGIN can be used to test passwords
and improve security. It checks the strength of password
and allows the users to set only those passwords which are
secure enough. Would you like to setup VALIDATE PASSWORD plugin?
Press y|Y for Yes, any other key for No: y（是否安裝密碼安全插件，開發環境可以選n）
There are three levels of password validation policy:
LOW Length >= 8
MEDIUM Length >= 8, numeric, mixed case, and special characters
STRONG Length >= 8, numeric, mixed case, special characters and dictionary file
Please enter 0 = LOW, 1 = MEDIUM and 2 = STRONG: （安全模式0低，1中等，2強）
Invalid option provided.
There are three levels of password validation policy:
LOW Length >= 8
MEDIUM Length >= 8, numeric, mixed case, and special characters
STRONG Length >= 8, numeric, mixed case, special characters and dictionary file
Please enter 0 = LOW, 1 = MEDIUM and 2 = STRONG: 2
Using existing password for root.
Estimated strength of the password: 25
Change the password for root ? ((Press y|Y for Yes, any other key for No) : n
… skipping.
By default, a MySQL installation has an anonymous user,
allowing anyone to log into MySQL without having to have
a user account created for them. This is intended only for
testing, and to make the installation go a bit smoother.
You should remove them before moving into a production
environment.
Remove anonymous users? (Press y|Y for Yes, any other key for No) : n（是否刪除匿名用戶）
… skipping.
Normally, root should only be allowed to connect from
'localhost'. This ensures that someone cannot guess at
the root password from the network.
Disallow root login remotely? (Press y|Y for Yes, any other key for No) : n（是否禁止root遠程登錄）
… skipping.
By default, MySQL comes with a database named 'test' that
anyone can access. This is also intended only for testing,
and should be removed before moving into a production
environment.
Remove test database and access to it? (Press y|Y for Yes, any other key for No) : n（是否刪除測試資料庫）
… skipping.
Reloading the privilege tables will ensure that all changes
made so far will take effect immediately.
Reload privilege tables now? (Press y|Y for Yes, any other key for No) : y（是否重新加載權限）
Success.
All done!
到此MySql資料庫安裝完成！
2. 創建資料庫jumpserver並授權
mysql -uroot -p
create database jumpserver default charset 'utf8';
grant all on jumpserver.* to 'jumpserver'@'127.0.0.1' identified by '123456';（密碼有複雜度要求）（jumpserver為資料庫名稱）
flush privileges;
quit
3. 修改jumpserver配置文件
cd /opt/jumpserver
cp config_example.yml config.yml
vim config.yml
如下：（記住你的BOOTSTRAP_TOKEN:*******隨機選項數字加字母）
# SECURITY WARNING: keep the secret key used in production secret!
# 加密秘鑰 生產環境中請修改為隨機字符串，請勿外洩, 可使用命令生成
# cat /dev/urandom | tr -dc A-Za-z0-9 | head -c 49;echo
SECRET_KEY: W5Ic3fMXNZ0p5RIy5DhJYJllppTfcfkW8Yuf94VBMfpcssbfu
# SECURITY WARNING: keep the bootstrap token used in production secret!
# 預共享Token coco和guacamole用來註冊服務帳號，不在使用原來的註冊接受機制
BOOTSTRAP_TOKEN: zxffNymGjP79j6BN
# Development env open this, when error occur display the full process track, Production disable it
# DEBUG 模式 開啟DEBUG後遇到錯誤時可以看到更多日誌
DEBUG: false
# DEBUG, INFO, WARNING, ERROR, CRITICAL can set. See https://docs.djangoproject.com/en/1.10/topics/logging/
# 日誌級別
LOG_LEVEL: ERROR
# LOG_DIR:
# Session expiration setting, Default 24 hour, Also set expired on on browser close
# 瀏覽器Session過期時間，默認24小時, 也可以設置瀏覽器關閉則過期
# SESSION_COOKIE_AGE: 86400
SESSION_EXPIRE_AT_BROWSER_CLOSE: true
# Database setting, Support sqlite3, mysql, postgres ....
# 資料庫設置
# See https://docs.djangoproject.com/en/1.10/ref/settings/#databases
# SQLite setting:
# 使用單文件sqlite資料庫
# DB_ENGINE: sqlite3
# DB_NAME:
# MySQL or postgres setting like:
# 使用Mysql作為資料庫
DB_ENGINE: mysql
DB_HOST: 127.0.0.1
DB_PORT: 3306
DB_USER: jumpserver
DB_PASSWORD: rBi41SrDqlX4zsx9e1L0cqTP（資料庫中創建的密碼）
DB_NAME: jumpserver
# When Django start it will bind this host and port
# ./manage.py runserver 127.0.0.1:8080
# 運行時綁定埠
HTTP_BIND_HOST: 0.0.0.0
HTTP_LISTEN_PORT: 8080
WS_LISTEN_PORT: 8070
# Use Redis as broker for celery and web socket
# Redis配置
REDIS_HOST: 127.0.0.1
REDIS_PORT: 6379
REDIS_PASSWORD: ZhYnLrodpmPncovxJTnRyiBs
# REDIS_DB_CELERY: 3
# REDIS_DB_CACHE: 4
# Use OpenID authorization
# 使用OpenID 來進行認證設置
# BASE_SITE_URL: http://localhost:8080
# AUTH_OPENID: false # True or False
# AUTH_OPENID_SERVER_URL: https://openid-auth-server.com/
# AUTH_OPENID_REALM_NAME: realm-name
# AUTH_OPENID_CLIENT_ID: client-id
# AUTH_OPENID_CLIENT_SECRET: client-secret
# AUTH_OPENID_IGNORE_SSL_VERIFICATION: True
# AUTH_OPENID_SHARE_SESSION: True
# Use Radius authorization
# 使用Radius來認證
# AUTH_RADIUS: false
# RADIUS_SERVER: localhost
# RADIUS_PORT: 1812
# RADIUS_SECRET:
# CAS 配置
# AUTH_CAS': False,
# CAS_SERVER_URL': "http://host/cas/",
# CAS_ROOT_PROXIED_AS': 'http://jumpserver-host:port',
# CAS_LOGOUT_COMPLETELY': True,
# CAS_VERSION': 3,
# LDAP/AD settings
# LDAP 搜索分頁數量
# AUTH_LDAP_SEARCH_PAGED_SIZE: 1000
#
# 定時同步用戶
# 啟用 / 禁用
# AUTH_LDAP_SYNC_IS_PERIODIC: True
# 同步間隔 (單位: 時) (優先）
# AUTH_LDAP_SYNC_INTERVAL: 12
# Crontab 表達式
# AUTH_LDAP_SYNC_CRONTAB: * 6 * * *
#
# LDAP 用戶登錄時僅允許在用戶列表中的用戶執行 LDAP Server 認證
# AUTH_LDAP_USER_LOGIN_ONLY_IN_USERS: False
#
# LDAP 認證時如果日誌中出現以下信息將參數設置為 0 (詳情參見：https://www.python-ldap.org/en/latest/faq.html)
# In order to perform this operation a successful bind must be completed on the connection
# AUTH_LDAP_OPTIONS_OPT_REFERRALS: -1
# OTP settings
# OTP/MFA 配置
# OTP_VALID_WINDOW: 0
# OTP_ISSUER_NAME: Jumpserver
# Perm show single asset to ungrouped node
# 是否把未授權節點資產放入到 未分組 節點中
# PERM_SINGLE_ASSET_TO_UNGROUP_NODE: false
#
# 啟用定時任務
# PERIOD_TASK_ENABLE: True
#
# 啟用二次複合認證配置
# LOGIN_CONFIRM_ENABLE: False
#
# Windows 登錄跳過手動輸入密碼
#WINDOWS_SKIP_ALL_MANUAL_PASSWORD: True
完成
啟動jumpserver服務
cd /opt/jumpserver
./jms start -d
4、 正常部署KOKO組件
1. 安裝部署koko
cd /opt && \
wgethttps://github.com/jumpserver/koko/releases/download/v2.0.2/koko-v2.0.2-linux-amd64.tar.gz
解壓
tar -xf koko-v2.0.2-linux-amd64.tar.gz && \
mv koko-v2.0.2-linux-amd64 koko && \
chown -R root:root koko && \
cd koko
2. 配置config.yml文件
cp config_example.yml config.yml && \
vi config.yml
如下 （BOOTSTRAP_TOKEN為jumpserver中的一致）
# 項目名稱, 會用來向Jumpserver註冊, 識別而已, 不能重複
# NAME: {{ Hostname }}
# Jumpserver項目的url, api請求註冊會使用
CORE_HOST: http://127.0.0.1:8080
# Bootstrap Token, 預共享秘鑰, 用來註冊coco使用的service account和terminal
# 請和jumpserver 配置文件中保持一致，註冊完成後可以刪除
BOOTSTRAP_TOKEN: zxffNymGjP79j6BN
# 啟動時綁定的ip, 默認 0.0.0.0
# BIND_HOST: 0.0.0.0
# 監聽的SSH埠號, 默認2222
# SSHD_PORT: 2222
# 監聽的HTTP/WS埠號，默認5000
# HTTPD_PORT: 5000
# 項目使用的ACCESS KEY, 默認會註冊,並保存到 ACCESS_KEY_STORE中,
# 如果有需求, 可以寫到配置文件中, 格式 access_key_id:access_key_secret
# ACCESS_KEY: null
# ACCESS KEY 保存的地址, 默認註冊後會保存到該文件中
# ACCESS_KEY_FILE: data/keys/.access_key
# 設置日誌級別 [DEBUG, INFO, WARN, ERROR, FATAL, CRITICAL]
LOG_LEVEL: ERROR
# SSH連接超時時間 (default 15 seconds)
# SSH_TIMEOUT: 15
# 語言 [en,zh]
# LANG: zh
# SFTP的根目錄, 可選 /tmp, Home其他自定義目錄
# SFTP_ROOT: /tmp
# SFTP是否顯示隱藏文件
# SFTP_SHOW_HIDDEN_FILE: false
# 是否復用和用戶後端資產已建立的連接(用戶不會復用其他用戶的連接)
# REUSE_CONNECTION: true
# 資產加載策略, 可根據資產規模自行調整. 默認異步加載資產, 異步搜索分頁; 如果為all, 則資產全部加載, 本地搜索分頁.
# ASSET_LOAD_POLICY:
# zip壓縮的最大額度 (單位: M)
# ZIP_MAX_SIZE: 1024M
# zip壓縮存放的臨時目錄 /tmp
# ZIP_TMP_PATH: /tmp
# 向 SSH Client 連接發送心跳的時間間隔 (單位: 秒)，默認為30, 0則表示不發送
# CLIENT_ALIVE_INTERVAL: 30
# 向資產發送心跳包的重試次數，默認為3
# RETRY_ALIVE_COUNT_MAX: 3
# 會話共享使用的類型 [local, redis], 默認local
SHARE_ROOM_TYPE: redis
# Redis配置
REDIS_HOST: 127.0.0.1
REDIS_PORT: 6379
#REDIS_PASSWORD: ZhYnLrodpmPncovxJTnRyiBs
# REDIS_CLUSTERS:
REDIS_DB_ROOM: 6
完成
啟動服務 ./koko -d
3. 正常部署 Guacamole 組件
下載
cd /opt && \wget -O docker-guacamole-v2.1.1.tar.gz https://github.com/jumpserver/docker-guacamole/archive/master.tar.gz
解壓
mkdir /opt/docker-guacamole && \
tar -xf docker-guacamole-v2.1.1.tar.gz -C /opt/docker-guacamole --strip-components 1 && \
rm -rf /opt/docker-guacamole-v2.1.1.tar.gz && \
cd /opt/docker-guacamole && \
wget http://download.jumpserver.org/public/guacamole-server-1.2.0.tar.gz && \
tar -xf guacamole-server-1.2.0.tar.gz && \
wget http://download.jumpserver.org/public/ssh-forward.tar.gz && \
tar -xf ssh-forward.tar.gz -C /bin/ && \
chmod x /bin/ssh-forward
cd /opt/guacamole/guacamole-server-1.2.0
./configure --with-init-dir=/etc/init.d && \
make && \
make install
5、 部署tomcat
1. 安裝java環境
apt-get -y install default-jre default-jdk
mkdir -p /config/guacamole /config/guacamole/extensions /config/guacamole/record /config/guacamole/drive && \
chown daemon:daemon /config/guacamole/record /config/guacamole/drive && \
cd /config
2. 配置Tomcat9
下載
wget http://mirrors.tuna.tsinghua.edu.cn/apache/tomcat/tomcat-9/v9.0.36/bin/apache-tomcat-9.0.36.tar.gz
tar -xf apache-tomcat-9.0.36.tar.gz && \
mv apache-tomcat-9.0.36 tomcat9 && \
rm -rf /config/tomcat9/webapps/* && \
sed -i 's/Connector/Connector/g' /config/tomcat9/conf/server.xml && \
echo "java.util.logging.ConsoleHandler.encoding = UTF-8" >> /config/tomcat9/conf/logging.properties
wget
tar -xf guacamole-client-v2.1.1.tar.gz
rm -rf guacamole-client-v2.1.1.tar.gz
cp guacamole-client-v2.1.1/guacamole-*.war /config/tomcat9/webapps/ROOT.war
cp guacamole-client-v2.1.1/guacamole-*.jar /config/guacamole/extensions/
mv /opt/docker-guacamole/guacamole.properties /config/guacamole/
rm -rf /opt/docker-guacamole
3. 設置 Guacamole 環境
export JUMPSERVER_SERVER=http://127.0.0.1:8080
echo "export JUMPSERVER_SERVER=http://127.0.0.1:8080" >> ~/.bashrc
export BOOTSTRAP_TOKEN={jumpserver的一致}
echo "export BOOTSTRAP_TOKEN={jumpserver的一致}" >> ~/.bashrc
export JUMPSERVER_KEY_DIR=/config/guacamole/keys
echo "export JUMPSERVER_KEY_DIR=/config/guacamole/keys" >> ~/.bashrc
export GUACAMOLE_HOME=/config/guacamole
echo "export GUACAMOLE_HOME=/config/guacamole" >> ~/.bashrc
export GUACAMOLE_LOG_LEVEL=ERROR
echo "export GUACAMOLE_LOG_LEVEL=ERROR" >> ~/.bashrc
export JUMPSERVER_ENABLE_DRIVE=true
echo "export JUMPSERVER_ENABLE_DRIVE=true" >> ~/.bashrc
環境變量說明
JUMPSERVER_SERVER 指 core 訪問地址
BOOTSTRAP_TOKEN 為 Jumpserver/config.yml 裡面的 BOOTSTRAP_TOKEN 值
JUMPSERVER_KEY_DIR 認證成功後 key 存放目錄
GUACAMOLE_HOME 為 guacamole.properties 配置文件所在目錄
GUACAMOLE_LOG_LEVEL 為生成日誌的等級
JUMPSERVER_ENABLE_DRIVE 為 rdp 協議掛載共享盤
啟動Guacamole
/etc/init.d/guacd start
sh /config/tomcat9/bin/startup.sh
4. 下載Lina luna組件
lina
cd /opt
wget https://github.com/jumpserver/lina/releases/download/v2.0.2/lina-v2.0.2.tar.gz
wget
tar -xf lina-v2.0.2.tar.gz
mv lina-v2.0.2 lina
chown -R nginx:nginx lina
luna
cd /opt
wget https://github.com/jumpserver/luna/releases/download/v2.0.2/luna-v2.0.2.tar.gz
tar -xf luna-v2.0.2.tar.gz
mv luna-v2.0.2 luna
chown -R nginx:nginx luna
6、 安裝nginx整合組件
1. 安裝nginx
$ apt-get update
$ apt-get -y install nginx
2. 準備配置文件
$ rm -rf /etc/nginx/conf.d/default.conf
$ vim /etc/nginx/conf.d/jumpserver.conf
如下
server {
listen 80;
client_max_body_size 100m; # 錄像及文件上傳大小限制
location /ui/ {
try_files $uri / /index.html;
alias /opt/lina/;
}
location /luna/ {
try_files $uri / /index.html;
alias /opt/luna/; # luna 路徑, 如果修改安裝目錄, 此處需要修改
}
location /media/ {
add_header Content-Encoding gzip;
root /opt/jumpserver/data/; # 錄像位置, 如果修改安裝目錄, 此處需要修改
}
location /static/ {
root /opt/jumpserver/data/; # 靜態資源, 如果修改安裝目錄, 此處需要修改
}
location /koko/ {
proxy_pass http://localhost:5000;
proxy_buffering off;
proxy_http_version 1.1;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection "upgrade";
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header Host $host;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
access_log off;
}
location /guacamole/ {
proxy_pass http://localhost:8081/;
proxy_buffering off;
proxy_http_version 1.1;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection $http_connection;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header Host $host;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
access_log off;
}
location /ws/ {
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header Host $host;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_pass http://localhost:8070;
proxy_http_version 1.1;
proxy_buffering off;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection "upgrade";
}
location /api/ {
proxy_pass http://localhost:8080;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header Host $host;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
location /core/ {
proxy_pass http://localhost:8080;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header Host $host;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
location / {
rewrite ^/(.*)$ /ui/$1 last;
}
}
完成
重啟nginx服務
nginx -t
nginx -s reload
七、測試打開Google 輸入http://IP:8080登陸jumpserver 默認用戶admin 密碼 admin
如果出現nginxwelcome界面 編輯vim /etc/nginx/nginx.conf 只保留include /etc/nginx/conf.d/*.conf;項
如果登錄客戶端是 macOS 或 Linux, 登錄語法如下
$ ssh -p2222 admin@IP
$ sftp -P2222 admin@IP
密碼: admin
如果登錄客戶端是 Windows, Xshell Terminal 登錄語法如下
$ ssh [email protected] 2222
$ sftp [email protected] 2222
密碼: admin
如果能登陸代表部署成功
sftp默認上傳的位置在資產的 /tmp 目錄下
windows拖拽上傳的位置在資產的 Guacamole RDP上的 G 目錄下
,
![2022愛方向和生日是在[質量個性]中](http://img.xinsiji.cc/20220215/1604989894118215680.jpg)
