springboot工作流實現（SpringBoot定時任務-如何集成ElasticJob實現分布式任務調度）

2023-04-12 02:19:04

前文展示quartz實現基於資料庫的分布式任務管理和job生命周期的控制，那在分布式場景下如何解決彈性調度、資源管控、以及作業治理等呢？針對這些功能前噹噹團隊開發了ElasticJob，2020 年 5 月 28 日ElasticJob成為 Apache ShardingSphere 的子項目；本文介紹ElasticJob以及SpringBoot的集成。@pdai

需要對分布式任務的知識體系和ElasticJob有基本的理解。@pdai

ElasticJob 是面向網際網路生態和海量任務的分布式調度解決方案，由兩個相互獨立的子項目 ElasticJob-Lite 和 ElasticJob-Cloud 組成。 它通過彈性調度、資源管控、以及作業治理的功能，打造一個適用於網際網路場景的分布式調度解決方案，並通過開放的架構設計，提供多元化的作業生態。 它的各個產品使用統一的作業 API，開發者僅需一次開發，即可隨意部署。ElasticJob 已於 2020 年 5 月 28 日成為 Apache ShardingSphere 的子項目。

使用 ElasticJob 能夠讓開發工程師不再擔心任務的線性吞吐量提升等非功能需求，使他們能夠更加專注於面向業務編碼設計； 同時，它也能夠解放運維工程師，使他們不必再擔心任務的可用性和相關管理需求，只通過輕鬆的增加服務節點即可達到自動化運維的目的。

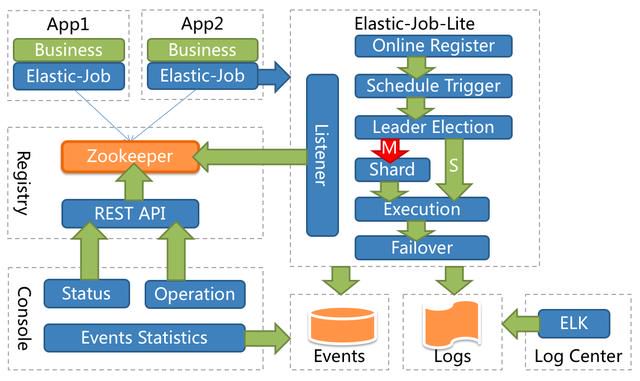

ElasticJob-Lite: 定位為輕量級無中心化解決方案，使用 jar 的形式提供分布式任務的協調服務。

Elasticjob-lite的案例- SpringBoot集成定時任務 - 分布式Elasticjob-lite方式

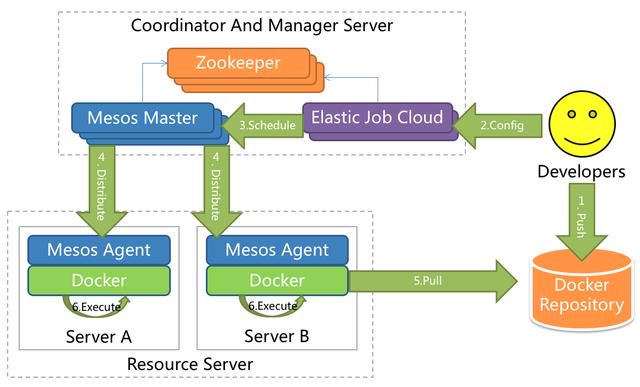

ElasticJob-Cloud： 採用自研 Mesos Framework 的解決方案，額外提供資源治理、應用分發以及進程隔離等功能。

ElasticJob-Lite和ElasticJob-Cloud的區別

ElasticJob-Lite ElasticJob-Cloud 無中心化 是 否 資源分配 不支持 支持 作業模式 常駐 常駐 瞬時 部署依賴 ZooKeeper ZooKeeper Mesos

本例將展示ElasticJob-Lite集成Springboot的案例，案例參考自ElasticJob的官網，同時做了一些調整和issue修復。

ElaticJob針對SpringBoot集成的starter依賴，針對錯誤通知的依賴elasticjob-error-handler-xxx（如果需要的話）

對任務的記錄和追蹤是存放在DB的，所以需要配置JPA和MySQL/H2等。

org.springframework.boot spring-boot-starter-web org.springframework.boot spring-boot-starter-data-jpa org.apache.shardingsphere.elasticjob elasticjob-lite-spring-boot-starter 3.0.1 org.apache.shardingsphere.elasticjob elasticjob-error-handler-dingtalk 3.0.1 org.apache.shardingsphere.elasticjob elasticjob-error-handler-wechat 3.0.1 org.apache.shardingsphere.elasticjob elasticjob-error-handler-email 3.0.1 org.apache.curator curator-test 5.2.0 mysql mysql-connector-java 5.1.42 runtime com.h2database h2 runtime org.springframework.boot spring-boot-starter-test test

Foo

/* * Licensed to the Apache Software Foundation (ASF) under one or more * contributor license agreements. See the NOTICE file distributed with * this work for additional information regarding copyright ownership. * The ASF licenses this file to You under the Apache License, Version 2.0 * (the "License"); you may not use this file except in compliance with * the License. You may obtain a copy of the License at * * http://www.apache.org/licenses/LICENSE-2.0 * * Unless required by applicable law or agreed to in writing, software * distributed under the License is distributed on an "AS IS" BASIS, * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. * See the License for the specific language governing permissions and * limitations under the License. */package tech.pdai.springboot.elasticjob.lite.entity;import java.io.Serializable;public final class Foo implements Serializable { private static final long serialVersionUID = 2706842871078949451L; private final long id; private final String location; private Status status; public Foo(final long id, final String location, final Status status) { this.id = id; this.location = location; this.status = status; } public long getId { return id; } public String getLocation { return location; } public Status getStatus { return status; } public void setStatus(final Status status) { this.status = status; } @Override public String toString { return String.format("id: %s, location: %s, status: %s", id, location, status); } public enum Status { TODO, COMPLETED }}

dao

/* * Licensed to the Apache Software Foundation (ASF) under one or more * contributor license agreements. See the NOTICE file distributed with * this work for additional information regarding copyright ownership. * The ASF licenses this file to You under the Apache License, Version 2.0 * (the "License"); you may not use this file except in compliance with * the License. You may obtain a copy of the License at * * http://www.apache.org/licenses/LICENSE-2.0 * * Unless required by applicable law or agreed to in writing, software * distributed under the License is distributed on an "AS IS" BASIS, * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. * See the License for the specific language governing permissions and * limitations under the License. */package tech.pdai.springboot.elasticjob.lite.repository;import org.springframework.stereotype.Repository;import tech.pdai.springboot.elasticjob.lite.entity.Foo;import java.util.ArrayList;import java.util.List;import java.util.Map;import java.util.concurrent.ConcurrentHashMap;@Repositorypublic class FooRepository { private final Map data = new ConcurrentHashMap(300, 1); public FooRepository { init; } private void init { addData(0L, 100L, "Beijing"); addData(100L, 200L, "Shanghai"); addData(200L, 300L, "Guangzhou"); } private void addData(final long idFrom, final long idTo, final String location) { for (long i = idFrom; i < idTo; i ) { data.put(i, new Foo(i, location, Foo.Status.TODO)); } } public List findTodoData(final String location, final int limit) { List result = new ArrayList(limit); int count = 0; for (Map.Entry each : data.entrySet) { Foo foo = each.getValue; if (foo.getLocation.equals(location) && foo.getStatus == Foo.Status.TODO) { result.add(foo); count ; if (count == limit) { break; } } } return result; } public void setCompleted(final long id) { data.get(id).setStatus(Foo.Status.COMPLETED); }}

/* * Licensed to the Apache Software Foundation (ASF) under one or more * contributor license agreements. See the NOTICE file distributed with * this work for additional information regarding copyright ownership. * The ASF licenses this file to You under the Apache License, Version 2.0 * (the "License"); you may not use this file except in compliance with * the License. You may obtain a copy of the License at * * http://www.apache.org/licenses/LICENSE-2.0 * * Unless required by applicable law or agreed to in writing, software * distributed under the License is distributed on an "AS IS" BASIS, * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. * See the License for the specific language governing permissions and * limitations under the License. */package tech.pdai.springboot.elasticjob.lite.job;import java.time.LocalDateTime;import java.util.List;import org.apache.shardingsphere.elasticjob.api.ShardingContext;import org.apache.shardingsphere.elasticjob.simple.job.SimpleJob;import org.slf4j.Logger;import org.slf4j.LoggerFactory;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Component;import tech.pdai.springboot.elasticjob.lite.entity.Foo;import tech.pdai.springboot.elasticjob.lite.repository.FooRepository;@Componentpublic class SpringBootSimpleJob implements SimpleJob { private final Logger logger = LoggerFactory.getLogger(SpringBootSimpleJob.class); @Autowired private FooRepository fooRepository; @Override public void execute(final ShardingContext shardingContext) { logger.info("Item: {} | Time: {} | Thread: {} | {}", shardingContext.getShardingItem, LocalDateTime.now, Thread.currentThread.getId, "SIMPLE"); List data = fooRepository.findTodoData(shardingContext.getShardingParameter, 10); for (Foo each : data) { fooRepository.setCompleted(each.getId); } }}

包含兩個主要方法，一個是獲取數據的方法fetchData， 一個是處理數據的方法processData

/* * Licensed to the Apache Software Foundation (ASF) under one or more * contributor license agreements. See the NOTICE file distributed with * this work for additional information regarding copyright ownership. * The ASF licenses this file to You under the Apache License, Version 2.0 * (the "License"); you may not use this file except in compliance with * the License. You may obtain a copy of the License at * * http://www.apache.org/licenses/LICENSE-2.0 * * Unless required by applicable law or agreed to in writing, software * distributed under the License is distributed on an "AS IS" BASIS, * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. * See the License for the specific language governing permissions and * limitations under the License. */package tech.pdai.springboot.elasticjob.lite.job;import java.time.LocalDateTime;import java.util.List;import javax.annotation.Resource;import org.apache.shardingsphere.elasticjob.api.ShardingContext;import org.apache.shardingsphere.elasticjob.dataflow.job.DataflowJob;import org.slf4j.Logger;import org.slf4j.LoggerFactory;import org.springframework.stereotype.Component;import tech.pdai.springboot.elasticjob.lite.entity.Foo;import tech.pdai.springboot.elasticjob.lite.repository.FooRepository;@Componentpublic class SpringBootDataflowJob implements DataflowJob { private final Logger logger = LoggerFactory.getLogger(SpringBootDataflowJob.class); @Resource private FooRepository fooRepository; @Override public List fetchData(final ShardingContext shardingContext) { logger.info("Item: {} | Time: {} | Thread: {} | {}", shardingContext.getShardingItem, LocalDateTime.now, Thread.currentThread.getId, "DATAFLOW FETCH"); return fooRepository.findTodoData(shardingContext.getShardingParameter, 10); } @Override public void processData(final ShardingContext shardingContext, final List data) { logger.info("Item: {} | Time: {} | Thread: {} | {}", shardingContext.getShardingItem, LocalDateTime.now, Thread.currentThread.getId, "DATAFLOW PROCESS"); for (Foo each : data) { fooRepository.setCompleted(each.getId); } }}

/* * Licensed to the Apache Software Foundation (ASF) under one or more * contributor license agreements. See the NOTICE file distributed with * this work for additional information regarding copyright ownership. * The ASF licenses this file to You under the Apache License, Version 2.0 * (the "License"); you may not use this file except in compliance with * the License. You may obtain a copy of the License at * * http://www.apache.org/licenses/LICENSE-2.0 * * Unless required by applicable law or agreed to in writing, software * distributed under the License is distributed on an "AS IS" BASIS, * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. * See the License for the specific language governing permissions and * limitations under the License. */package tech.pdai.springboot.elasticjob.lite.job;import org.apache.shardingsphere.elasticjob.api.ShardingContext;import org.apache.shardingsphere.elasticjob.simple.job.SimpleJob;import org.springframework.stereotype.Component;@Componentpublic class SpringBootOccurErrorNoticeEmailJob implements SimpleJob { @Override public void execute(final ShardingContext shardingContext) { throw new RuntimeException(String.format("An exception has occurred in Job, The parameter is %s", shardingContext.getShardingParameter)); }}

/* * Licensed to the Apache Software Foundation (ASF) under one or more * contributor license agreements. See the NOTICE file distributed with * this work for additional information regarding copyright ownership. * The ASF licenses this file to You under the Apache License, Version 2.0 * (the "License"); you may not use this file except in compliance with * the License. You may obtain a copy of the License at * * http://www.apache.org/licenses/LICENSE-2.0 * * Unless required by applicable law or agreed to in writing, software * distributed under the License is distributed on an "AS IS" BASIS, * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. * See the License for the specific language governing permissions and * limitations under the License. */package tech.pdai.springboot.elasticjob.lite.job;import org.apache.shardingsphere.elasticjob.api.ShardingContext;import org.apache.shardingsphere.elasticjob.simple.job.SimpleJob;import org.springframework.stereotype.Component;@Componentpublic class SpringBootOccurErrorNoticeWechatJob implements SimpleJob { @Override public void execute(final ShardingContext shardingContext) { throw new RuntimeException(String.format("An exception has occurred in Job, The parameter is %s", shardingContext.getShardingParameter)); }}

/* * Licensed to the Apache Software Foundation (ASF) under one or more * contributor license agreements. See the NOTICE file distributed with * this work for additional information regarding copyright ownership. * The ASF licenses this file to You under the Apache License, Version 2.0 * (the "License"); you may not use this file except in compliance with * the License. You may obtain a copy of the License at * * http://www.apache.org/licenses/LICENSE-2.0 * * Unless required by applicable law or agreed to in writing, software * distributed under the License is distributed on an "AS IS" BASIS, * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. * See the License for the specific language governing permissions and * limitations under the License. */package tech.pdai.springboot.elasticjob.lite.job;import org.apache.shardingsphere.elasticjob.api.ShardingContext;import org.apache.shardingsphere.elasticjob.simple.job.SimpleJob;import org.springframework.stereotype.Component;@Componentpublic class SpringBootOccurErrorNoticeDingtalkJob implements SimpleJob { @Override public void execute(final ShardingContext shardingContext) { throw new RuntimeException(String.format("An exception has occurred in Job, The parameter is %s", shardingContext.getShardingParameter)); }}

spring: profiles: active: develasticjob: tracing: type: RDB regCenter: serverLists: localhost:6181 namespace: elasticjob-lite-springboot jobs: simpleJob: elasticJobClass: tech.pdai.springboot.elasticjob.lite.job.SpringBootSimpleJob cron: 0/5 * * * * ? shardingTotalCount: 3 shardingItemParameters: 0=Beijing,1=Shanghai,2=Guangzhou dataflowJob: elasticJobClass: tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob cron: 0/5 * * * * ? shardingTotalCount: 3 shardingItemParameters: 0=Beijing,1=Shanghai,2=Guangzhou scriptJob: elasticJobType: SCRIPT cron: 0/10 * * * * ? shardingTotalCount: 3 props: script.command.line: "echo SCRIPT Job: " occurErrorNoticeDingtalkJob: elasticJobClass: tech.pdai.springboot.elasticjob.lite.job.SpringBootOccurErrorNoticeDingtalkJob overwrite: true shardingTotalCount: 3 shardingItemParameters: 0=Beijing,1=Shanghai,2=Guangzhou jobErrorHandlerType: DINGTALK jobBootstrapBeanName: occurErrorNoticeDingtalkBean props: dingtalk: webhook: you_webhook keyword: you_keyword secret: you_secret connectTimeout: 3000 readTimeout: 5000 occurErrorNoticeWechatJob: elasticJobClass: tech.pdai.springboot.elasticjob.lite.job.SpringBootOccurErrorNoticeWechatJob overwrite: true shardingTotalCount: 3 shardingItemParameters: 0=Beijing,1=Shanghai,2=Guangzhou jobErrorHandlerType: WECHAT jobBootstrapBeanName: occurErrorNoticeWechatBean props: wechat: webhook: you_webhook connectTimeout: 3000 readTimeout: 5000 occurErrorNoticeEmailJob: elasticJobClass: tech.pdai.springboot.elasticjob.lite.job.SpringBootOccurErrorNoticeEmailJob overwrite: true shardingTotalCount: 3 shardingItemParameters: 0=Beijing,1=Shanghai,2=Guangzhou jobErrorHandlerType: EMAIL jobBootstrapBeanName: occurErrorNoticeEmailBean props: email: host: host port: 465 username: username password: password useSsl: true subject: ElasticJob error message from: [email protected] to: [email protected],[email protected] cc: [email protected] bcc: [email protected] debug: false dump: port: 9888knife4j: enable: true setting: # default lang language: en-US # footer enableFooter: false enableFooterCustom: true footerCustomContent: MIT | [Java 全棧](https://pdai.tech) # models enableSwaggerModels: true swaggerModelName: My Models

註冊中心主要依賴ZK, 才用內置的zk.

/* * Licensed to the Apache Software Foundation (ASF) under one or more * contributor license agreements. See the NOTICE file distributed with * this work for additional information regarding copyright ownership. * The ASF licenses this file to You under the Apache License, Version 2.0 * (the "License"); you may not use this file except in compliance with * the License. You may obtain a copy of the License at * * http://www.apache.org/licenses/LICENSE-2.0 * * Unless required by applicable law or agreed to in writing, software * distributed under the License is distributed on an "AS IS" BASIS, * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. * See the License for the specific language governing permissions and * limitations under the License. */package tech.pdai.springboot.elasticjob.lite;import java.io.File;import java.io.IOException;import org.apache.curator.test.TestingServer;/** * Embed ZooKeeper. * * * Only used for examples * */public final class EmbedZookeeperServer { private static TestingServer testingServer; /** * Embed ZooKeeper. * * @param port ZooKeeper port */ public static void start(final int port) { try { testingServer = new TestingServer(port, new File(String.format("target/test_zk_data/%s/", System.nanoTime))); } catch (final Exception ex) { ex.printStackTrace; } finally { Runtime.getRuntime.addShutdownHook(new Thread( -> { try { Thread.sleep(1000L); testingServer.close; } catch (final InterruptedException | IOException ignore) { } })); } }}

任務持久化，本地環境

通過controller接口觸發測試異常通知功能。

/* * Licensed to the Apache Software Foundation (ASF) under one or more * contributor license agreements. See the NOTICE file distributed with * this work for additional information regarding copyright ownership. * The ASF licenses this file to You under the Apache License, Version 2.0 * (the "License"); you may not use this file except in compliance with * the License. You may obtain a copy of the License at * * http://www.apache.org/licenses/LICENSE-2.0 * * Unless required by applicable law or agreed to in writing, software * distributed under the License is distributed on an "AS IS" BASIS, * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. * See the License for the specific language governing permissions and * limitations under the License. */package tech.pdai.springboot.elasticjob.lite.controller;import javax.annotation.Resource;import io.swagger.annotations.ApiOperation;import org.apache.shardingsphere.elasticjob.lite.api.bootstrap.impl.OneOffJobBootstrap;import org.springframework.context.annotation.Lazy;import org.springframework.web.bind.annotation.GetMapping;import org.springframework.web.bind.annotation.RestController;import tech.pdai.springboot.elasticjob.lite.entity.response.ResponseResult;/** * 這裡需要加上@Lazy, 請看這個issue:https://github.com/apache/shardingsphere-elasticjob/issues/2014 */@Lazy@RestControllerpublic class OneOffJobController { @Resource(name = "occurErrorNoticeDingtalkBean") private OneOffJobBootstrap occurErrorNoticeDingtalkJob; @Resource(name = "occurErrorNoticeWechatBean") private OneOffJobBootstrap occurErrorNoticeWechatJob; @Resource(name = "occurErrorNoticeEmailBean") private OneOffJobBootstrap occurErrorNoticeEmailJob; @ApiOperation("Test occurErrorNoticeDingtalkJob") @GetMapping("/execute/occurErrorNoticeDingtalkJob") public ResponseResult executeOneOffJob { occurErrorNoticeDingtalkJob.execute; return ResponseResult.success; } @ApiOperation("Test executeOccurErrorNoticeWechatJob") @GetMapping("/execute/occurErrorNoticeWechatJob") public ResponseResult executeOccurErrorNoticeWechatJob { occurErrorNoticeWechatJob.execute; return ResponseResult.success; } @ApiOperation("Test executeOccurErrorNoticeEmailJob") @GetMapping("/execute/occurErrorNoticeEmailJob") public ResponseResult executeOccurErrorNoticeEmailJob { occurErrorNoticeEmailJob.execute; return ResponseResult.success; }}

非OneOff的任務，可以通過console查看相關日誌

[WARN ] 2022-06-06 20:03:49,828 --Thread-1-- [org.apache.zookeeper.server.ServerCnxnFactory] maxCnxns is not configured, using default value 0. . ____ _ __ _ _ /\\ / ___'_ __ _ _(_)_ __ __ _ \ \ \ \( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \ \\/ ___)| |_)| | | | | || (_| | ) ) ) ) ' |____| .__|_| |_|_| |_\__, | / / / / =========|_|==============|___/=/_/_/_/ :: Spring Boot :: (v2.5.3)[INFO ] 2022-06-06 20:03:50,380 --main-- [tech.pdai.springboot.elasticjob.lite.SpringBootMain] Starting SpringBootMain using Java 1.8.0_181 on MacBook-Pro.local with PID 6275 (/Users/pdai/pdai/www/tech-pdai-spring-demos/424-springboot-demo-schedule-elastic-job-lite/target/classes started by pdai in /Users/pdai/pdai/www/tech-pdai-spring-demos) [INFO ] 2022-06-06 20:03:50,380 --main-- [tech.pdai.springboot.elasticjob.lite.SpringBootMain] The following profiles are active: dev [INFO ] 2022-06-06 20:03:51,464 --main-- [org.springframework.data.repository.config.RepositoryConfigurationDelegate] Bootstrapping Spring Data JPA repositories in DEFAULT mode. [INFO ] 2022-06-06 20:03:51,479 --main-- [org.springframework.data.repository.config.RepositoryConfigurationDelegate] Finished Spring Data repository scanning in 6 ms. Found 0 JPA repository interfaces. [INFO ] 2022-06-06 20:03:52,039 --main-- [org.springframework.boot.web.embedded.tomcat.TomcatWebServer] Tomcat initialized with port(s): 8080 (http) [INFO ] 2022-06-06 20:03:52,048 --main-- [org.apache.coyote.http11.Http11NioProtocol] Initializing ProtocolHandler ["http-nio-8080"] [INFO ] 2022-06-06 20:03:52,049 --main-- [org.apache.catalina.core.StandardService] Starting service [Tomcat] [INFO ] 2022-06-06 20:03:52,049 --main-- [org.apache.catalina.core.StandardEngine] Starting Servlet engine: [Apache Tomcat/9.0.50] [INFO ] 2022-06-06 20:03:52,128 --main-- [org.apache.catalina.core.ContainerBase.[Tomcat].[localhost].[/]] Initializing Spring embedded WebApplicationContext [INFO ] 2022-06-06 20:03:52,128 --main-- [org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext] Root WebApplicationContext: initialization completed in 1698 ms [INFO ] 2022-06-06 20:03:52,156 --main-- [com.zaxxer.hikari.HikariDataSource] HikariPool-1 - Starting... [INFO ] 2022-06-06 20:03:52,330 --main-- [com.zaxxer.hikari.HikariDataSource] HikariPool-1 - Start completed. [INFO ] 2022-06-06 20:03:52,335 --main-- [org.springframework.boot.autoconfigure.h2.H2ConsoleAutoConfiguration] H2 console available at '/h2-console'. Database available at 'jdbc:h2:mem:job_event_storage' [INFO ] 2022-06-06 20:03:52,472 --main-- [org.hibernate.jpa.internal.util.LogHelper] HHH000204: Processing PersistenceUnitInfo [name: default] [INFO ] 2022-06-06 20:03:52,526 --main-- [org.hibernate.Version] HHH000412: Hibernate ORM core version 5.4.32.Final [INFO ] 2022-06-06 20:03:52,656 --main-- [org.hibernate.annotations.common.Version] HCANN000001: Hibernate Commons Annotations {5.1.2.Final} [INFO ] 2022-06-06 20:03:52,750 --main-- [org.hibernate.dialect.Dialect] HHH000400: Using dialect: org.hibernate.dialect.H2Dialect [INFO ] 2022-06-06 20:03:52,939 --main-- [org.hibernate.engine.transaction.jta.platform.internal.JtaPlatformInitiator] HHH000490: Using JtaPlatform implementation: [org.hibernate.engine.transaction.jta.platform.internal.NoJtaPlatform] [INFO ] 2022-06-06 20:03:52,950 --main-- [org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean] Initialized JPA EntityManagerFactory for persistence unit 'default' [WARN ] 2022-06-06 20:03:53,163 --main-- [org.springframework.boot.autoconfigure.orm.jpa.JpaBaseConfiguration$JpaWebConfiguration] spring.jpa.open-in-view is enabled by default. Therefore, database queries may be performed during view rendering. Explicitly configure spring.jpa.open-in-view to disable this warning [INFO ] 2022-06-06 20:03:53,719 --main-- [org.apache.shardingsphere.elasticjob.lite.internal.snapshot.SnapshotService] ElasticJob: Snapshot service is running on port '9888' [INFO ] 2022-06-06 20:03:53,836 --main-- [org.apache.shardingsphere.elasticjob.lite.spring.boot.job.ElasticJobBootstrapConfiguration] creating Job Bootstrap Beans [INFO ] 2022-06-06 20:03:53,868 --main-- [org.apache.shardingsphere.elasticjob.lite.spring.core.setup.SpringProxyJobClassNameProvider] create SpringProxyJobClassNameProvider [INFO ] 2022-06-06 20:03:54,250 --main-- [org.quartz.impl.StdSchedulerFactory] Using default implementation for ThreadExecutor [INFO ] 2022-06-06 20:03:54,258 --main-- [org.quartz.core.SchedulerSignalerImpl] Initialized Scheduler Signaller of type: class org.quartz.core.SchedulerSignalerImpl [INFO ] 2022-06-06 20:03:54,258 --main-- [org.quartz.core.QuartzScheduler] Quartz Scheduler v.2.3.2 created. [INFO ] 2022-06-06 20:03:54,258 --main-- [org.apache.shardingsphere.elasticjob.lite.internal.schedule.JobShutdownHookPlugin] Registering Quartz shutdown hook. simpleJob [INFO ] 2022-06-06 20:03:54,258 --main-- [org.quartz.simpl.RAMJobStore] RAMJobStore initialized. [INFO ] 2022-06-06 20:03:54,259 --main-- [org.quartz.core.QuartzScheduler] Scheduler meta-data: Quartz Scheduler (v2.3.2) 'simpleJob' with instanceId 'NON_CLUSTERED' Scheduler class: 'org.quartz.core.QuartzScheduler' - running locally. NOT STARTED. Currently in standby mode. Number of jobs executed: 0 Using thread pool 'org.quartz.simpl.SimpleThreadPool' - with 1 threads. Using job-store 'org.quartz.simpl.RAMJobStore' - which does not support persistence. and is not clustered. [INFO ] 2022-06-06 20:03:54,259 --main-- [org.quartz.impl.StdSchedulerFactory] Quartz scheduler 'simpleJob' initialized from an externally provided properties instance. [INFO ] 2022-06-06 20:03:54,259 --main-- [org.quartz.impl.StdSchedulerFactory] Quartz scheduler version: 2.3.2 [INFO ] 2022-06-06 20:03:54,329 --main-- [org.quartz.impl.StdSchedulerFactory] Using default implementation for ThreadExecutor [INFO ] 2022-06-06 20:03:54,330 --main-- [org.quartz.core.SchedulerSignalerImpl] Initialized Scheduler Signaller of type: class org.quartz.core.SchedulerSignalerImpl [INFO ] 2022-06-06 20:03:54,330 --main-- [org.quartz.core.QuartzScheduler] Quartz Scheduler v.2.3.2 created. [INFO ] 2022-06-06 20:03:54,330 --main-- [org.apache.shardingsphere.elasticjob.lite.internal.schedule.JobShutdownHookPlugin] Registering Quartz shutdown hook. dataflowJob [INFO ] 2022-06-06 20:03:54,330 --main-- [org.quartz.simpl.RAMJobStore] RAMJobStore initialized. [INFO ] 2022-06-06 20:03:54,330 --main-- [org.quartz.core.QuartzScheduler] Scheduler meta-data: Quartz Scheduler (v2.3.2) 'dataflowJob' with instanceId 'NON_CLUSTERED' Scheduler class: 'org.quartz.core.QuartzScheduler' - running locally. NOT STARTED. Currently in standby mode. Number of jobs executed: 0 Using thread pool 'org.quartz.simpl.SimpleThreadPool' - with 1 threads. Using job-store 'org.quartz.simpl.RAMJobStore' - which does not support persistence. and is not clustered. [INFO ] 2022-06-06 20:03:54,330 --main-- [org.quartz.impl.StdSchedulerFactory] Quartz scheduler 'dataflowJob' initialized from an externally provided properties instance. [INFO ] 2022-06-06 20:03:54,330 --main-- [org.quartz.impl.StdSchedulerFactory] Quartz scheduler version: 2.3.2 [INFO ] 2022-06-06 20:03:54,360 --main-- [org.quartz.impl.StdSchedulerFactory] Using default implementation for ThreadExecutor [INFO ] 2022-06-06 20:03:54,360 --main-- [org.quartz.core.SchedulerSignalerImpl] Initialized Scheduler Signaller of type: class org.quartz.core.SchedulerSignalerImpl [INFO ] 2022-06-06 20:03:54,360 --main-- [org.quartz.core.QuartzScheduler] Quartz Scheduler v.2.3.2 created. [INFO ] 2022-06-06 20:03:54,360 --main-- [org.apache.shardingsphere.elasticjob.lite.internal.schedule.JobShutdownHookPlugin] Registering Quartz shutdown hook. scriptJob [INFO ] 2022-06-06 20:03:54,360 --main-- [org.quartz.simpl.RAMJobStore] RAMJobStore initialized. [INFO ] 2022-06-06 20:03:54,360 --main-- [org.quartz.core.QuartzScheduler] Scheduler meta-data: Quartz Scheduler (v2.3.2) 'scriptJob' with instanceId 'NON_CLUSTERED' Scheduler class: 'org.quartz.core.QuartzScheduler' - running locally. NOT STARTED. Currently in standby mode. Number of jobs executed: 0 Using thread pool 'org.quartz.simpl.SimpleThreadPool' - with 1 threads. Using job-store 'org.quartz.simpl.RAMJobStore' - which does not support persistence. and is not clustered. [INFO ] 2022-06-06 20:03:54,360 --main-- [org.quartz.impl.StdSchedulerFactory] Quartz scheduler 'scriptJob' initialized from an externally provided properties instance. [INFO ] 2022-06-06 20:03:54,360 --main-- [org.quartz.impl.StdSchedulerFactory] Quartz scheduler version: 2.3.2 [INFO ] 2022-06-06 20:03:54,387 --main-- [org.quartz.impl.StdSchedulerFactory] Using default implementation for ThreadExecutor [INFO ] 2022-06-06 20:03:54,387 --main-- [org.quartz.core.SchedulerSignalerImpl] Initialized Scheduler Signaller of type: class org.quartz.core.SchedulerSignalerImpl [INFO ] 2022-06-06 20:03:54,387 --main-- [org.quartz.core.QuartzScheduler] Quartz Scheduler v.2.3.2 created. [INFO ] 2022-06-06 20:03:54,387 --main-- [org.apache.shardingsphere.elasticjob.lite.internal.schedule.JobShutdownHookPlugin] Registering Quartz shutdown hook. occurErrorNoticeDingtalkJob [INFO ] 2022-06-06 20:03:54,387 --main-- [org.quartz.simpl.RAMJobStore] RAMJobStore initialized. [INFO ] 2022-06-06 20:03:54,387 --main-- [org.quartz.core.QuartzScheduler] Scheduler meta-data: Quartz Scheduler (v2.3.2) 'occurErrorNoticeDingtalkJob' with instanceId 'NON_CLUSTERED' Scheduler class: 'org.quartz.core.QuartzScheduler' - running locally. NOT STARTED. Currently in standby mode. Number of jobs executed: 0 Using thread pool 'org.quartz.simpl.SimpleThreadPool' - with 1 threads. Using job-store 'org.quartz.simpl.RAMJobStore' - which does not support persistence. and is not clustered. [INFO ] 2022-06-06 20:03:54,387 --main-- [org.quartz.impl.StdSchedulerFactory] Quartz scheduler 'occurErrorNoticeDingtalkJob' initialized from an externally provided properties instance. [INFO ] 2022-06-06 20:03:54,387 --main-- [org.quartz.impl.StdSchedulerFactory] Quartz scheduler version: 2.3.2 [INFO ] 2022-06-06 20:03:54,412 --main-- [org.quartz.impl.StdSchedulerFactory] Using default implementation for ThreadExecutor [INFO ] 2022-06-06 20:03:54,413 --main-- [org.quartz.core.SchedulerSignalerImpl] Initialized Scheduler Signaller of type: class org.quartz.core.SchedulerSignalerImpl [INFO ] 2022-06-06 20:03:54,413 --main-- [org.quartz.core.QuartzScheduler] Quartz Scheduler v.2.3.2 created. [INFO ] 2022-06-06 20:03:54,413 --main-- [org.apache.shardingsphere.elasticjob.lite.internal.schedule.JobShutdownHookPlugin] Registering Quartz shutdown hook. occurErrorNoticeWechatJob [INFO ] 2022-06-06 20:03:54,413 --main-- [org.quartz.simpl.RAMJobStore] RAMJobStore initialized. [INFO ] 2022-06-06 20:03:54,413 --main-- [org.quartz.core.QuartzScheduler] Scheduler meta-data: Quartz Scheduler (v2.3.2) 'occurErrorNoticeWechatJob' with instanceId 'NON_CLUSTERED' Scheduler class: 'org.quartz.core.QuartzScheduler' - running locally. NOT STARTED. Currently in standby mode. Number of jobs executed: 0 Using thread pool 'org.quartz.simpl.SimpleThreadPool' - with 1 threads. Using job-store 'org.quartz.simpl.RAMJobStore' - which does not support persistence. and is not clustered. [INFO ] 2022-06-06 20:03:54,413 --main-- [org.quartz.impl.StdSchedulerFactory] Quartz scheduler 'occurErrorNoticeWechatJob' initialized from an externally provided properties instance. [INFO ] 2022-06-06 20:03:54,413 --main-- [org.quartz.impl.StdSchedulerFactory] Quartz scheduler version: 2.3.2 [INFO ] 2022-06-06 20:03:54,446 --main-- [org.quartz.impl.StdSchedulerFactory] Using default implementation for ThreadExecutor [INFO ] 2022-06-06 20:03:54,447 --main-- [org.quartz.core.SchedulerSignalerImpl] Initialized Scheduler Signaller of type: class org.quartz.core.SchedulerSignalerImpl [INFO ] 2022-06-06 20:03:54,447 --main-- [org.quartz.core.QuartzScheduler] Quartz Scheduler v.2.3.2 created. [INFO ] 2022-06-06 20:03:54,447 --main-- [org.apache.shardingsphere.elasticjob.lite.internal.schedule.JobShutdownHookPlugin] Registering Quartz shutdown hook. occurErrorNoticeEmailJob [INFO ] 2022-06-06 20:03:54,447 --main-- [org.quartz.simpl.RAMJobStore] RAMJobStore initialized. [INFO ] 2022-06-06 20:03:54,447 --main-- [org.quartz.core.QuartzScheduler] Scheduler meta-data: Quartz Scheduler (v2.3.2) 'occurErrorNoticeEmailJob' with instanceId 'NON_CLUSTERED' Scheduler class: 'org.quartz.core.QuartzScheduler' - running locally. NOT STARTED. Currently in standby mode. Number of jobs executed: 0 Using thread pool 'org.quartz.simpl.SimpleThreadPool' - with 1 threads. Using job-store 'org.quartz.simpl.RAMJobStore' - which does not support persistence. and is not clustered. [INFO ] 2022-06-06 20:03:54,447 --main-- [org.quartz.impl.StdSchedulerFactory] Quartz scheduler 'occurErrorNoticeEmailJob' initialized from an externally provided properties instance. [INFO ] 2022-06-06 20:03:54,447 --main-- [org.quartz.impl.StdSchedulerFactory] Quartz scheduler version: 2.3.2 [INFO ] 2022-06-06 20:03:54,462 --main-- [org.apache.shardingsphere.elasticjob.lite.spring.boot.job.ElasticJobBootstrapConfiguration] Job Bootstrap Beans created. [INFO ] 2022-06-06 20:03:54,474 --main-- [org.apache.coyote.http11.Http11NioProtocol] Starting ProtocolHandler ["http-nio-8080"] [INFO ] 2022-06-06 20:03:54,483 --main-- [org.springframework.boot.web.embedded.tomcat.TomcatWebServer] Tomcat started on port(s): 8080 (http) with context path '' [INFO ] 2022-06-06 20:03:54,772 --main-- [tech.pdai.springboot.elasticjob.lite.SpringBootMain] Started SpringBootMain in 4.75 seconds (JVM running for 5.51) [INFO ] 2022-06-06 20:03:54,774 --main-- [org.apache.shardingsphere.elasticjob.lite.spring.boot.job.ScheduleJobBootstrapStartupRunner] Starting ElasticJob Bootstrap. [INFO ] 2022-06-06 20:03:54,780 --main-- [org.quartz.core.QuartzScheduler] Scheduler simpleJob_$_NON_CLUSTERED started. [INFO ] 2022-06-06 20:03:54,781 --main-- [org.quartz.core.QuartzScheduler] Scheduler dataflowJob_$_NON_CLUSTERED started. [INFO ] 2022-06-06 20:03:54,782 --main-- [org.quartz.core.QuartzScheduler] Scheduler scriptJob_$_NON_CLUSTERED started. [INFO ] 2022-06-06 20:03:54,782 --main-- [org.apache.shardingsphere.elasticjob.lite.spring.boot.job.ScheduleJobBootstrapStartupRunner] ElasticJob Bootstrap started. [INFO ] 2022-06-06 20:03:55,068 --elasticjob-dataflowJob-1-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 0 | Time: 2022-06-06T20:03:55.068 | Thread: 130 | DATAFLOW FETCH [INFO ] 2022-06-06 20:03:55,068 --elasticjob-dataflowJob-3-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 2 | Time: 2022-06-06T20:03:55.068 | Thread: 133 | DATAFLOW FETCH [INFO ] 2022-06-06 20:03:55,068 --elasticjob-simpleJob-1-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootSimpleJob] Item: 0 | Time: 2022-06-06T20:03:55.068 | Thread: 129 | SIMPLE [INFO ] 2022-06-06 20:03:55,068 --elasticjob-simpleJob-3-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootSimpleJob] Item: 2 | Time: 2022-06-06T20:03:55.068 | Thread: 134 | SIMPLE [INFO ] 2022-06-06 20:03:55,068 --elasticjob-dataflowJob-2-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 1 | Time: 2022-06-06T20:03:55.068 | Thread: 131 | DATAFLOW FETCH [INFO ] 2022-06-06 20:03:55,068 --elasticjob-simpleJob-2-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootSimpleJob] Item: 1 | Time: 2022-06-06T20:03:55.068 | Thread: 132 | SIMPLE [INFO ] 2022-06-06 20:03:55,076 --elasticjob-dataflowJob-2-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 1 | Time: 2022-06-06T20:03:55.076 | Thread: 131 | DATAFLOW PROCESS [INFO ] 2022-06-06 20:03:55,076 --elasticjob-dataflowJob-1-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 0 | Time: 2022-06-06T20:03:55.076 | Thread: 130 | DATAFLOW PROCESS [INFO ] 2022-06-06 20:03:55,076 --elasticjob-dataflowJob-3-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 2 | Time: 2022-06-06T20:03:55.076 | Thread: 133 | DATAFLOW PROCESS [INFO ] 2022-06-06 20:04:00,015 --elasticjob-simpleJob-4-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootSimpleJob] Item: 0 | Time: 2022-06-06T20:04:00.015 | Thread: 158 | SIMPLE [INFO ] 2022-06-06 20:04:00,015 --elasticjob-dataflowJob-4-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 0 | Time: 2022-06-06T20:04:00.015 | Thread: 159 | DATAFLOW FETCH [INFO ] 2022-06-06 20:04:00,015 --elasticjob-dataflowJob-5-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 1 | Time: 2022-06-06T20:04:00.015 | Thread: 163 | DATAFLOW FETCH [INFO ] 2022-06-06 20:04:00,015 --elasticjob-simpleJob-5-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootSimpleJob] Item: 1 | Time: 2022-06-06T20:04:00.015 | Thread: 160 | SIMPLE [INFO ] 2022-06-06 20:04:00,015 --elasticjob-dataflowJob-4-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 0 | Time: 2022-06-06T20:04:00.015 | Thread: 159 | DATAFLOW PROCESS [INFO ] 2022-06-06 20:04:00,015 --elasticjob-dataflowJob-5-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 1 | Time: 2022-06-06T20:04:00.015 | Thread: 163 | DATAFLOW PROCESS [INFO ] 2022-06-06 20:04:00,015 --elasticjob-simpleJob-6-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootSimpleJob] Item: 2 | Time: 2022-06-06T20:04:00.015 | Thread: 164 | SIMPLE [INFO ] 2022-06-06 20:04:00,015 --elasticjob-dataflowJob-6-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 2 | Time: 2022-06-06T20:04:00.015 | Thread: 165 | DATAFLOW FETCH [INFO ] 2022-06-06 20:04:00,016 --elasticjob-dataflowJob-6-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 2 | Time: 2022-06-06T20:04:00.016 | Thread: 165 | DATAFLOW PROCESS SCRIPT Job: {"jobName":"scriptJob","taskId":"scriptJob@-@0,1,2@-@READY@[email protected]@-@6275","shardingTotalCount":3,"jobParameter":"","shardingItem":1}SCRIPT Job: {"jobName":"scriptJob","taskId":"scriptJob@-@0,1,2@-@READY@[email protected]@-@6275","shardingTotalCount":3,"jobParameter":"","shardingItem":2}SCRIPT Job: {"jobName":"scriptJob","taskId":"scriptJob@-@0,1,2@-@READY@[email protected]@-@6275","shardingTotalCount":3,"jobParameter":"","shardingItem":0}[INFO ] 2022-06-06 20:04:05,012 --elasticjob-simpleJob-8-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootSimpleJob] Item: 1 | Time: 2022-06-06T20:04:05.012 | Thread: 181 | SIMPLE [INFO ] 2022-06-06 20:04:05,012 --elasticjob-simpleJob-7-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootSimpleJob] Item: 0 | Time: 2022-06-06T20:04:05.012 | Thread: 178 | SIMPLE [INFO ] 2022-06-06 20:04:05,012 --elasticjob-dataflowJob-9-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 2 | Time: 2022-06-06T20:04:05.012 | Thread: 182 | DATAFLOW FETCH [INFO ] 2022-06-06 20:04:05,012 --elasticjob-dataflowJob-7-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 0 | Time: 2022-06-06T20:04:05.011 | Thread: 179 | DATAFLOW FETCH [INFO ] 2022-06-06 20:04:05,012 --elasticjob-dataflowJob-8-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 1 | Time: 2022-06-06T20:04:05.012 | Thread: 180 | DATAFLOW FETCH [INFO ] 2022-06-06 20:04:05,012 --elasticjob-dataflowJob-7-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 0 | Time: 2022-06-06T20:04:05.012 | Thread: 179 | DATAFLOW PROCESS [INFO ] 2022-06-06 20:04:05,012 --elasticjob-dataflowJob-9-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 2 | Time: 2022-06-06T20:04:05.012 | Thread: 182 | DATAFLOW PROCESS [INFO ] 2022-06-06 20:04:05,012 --elasticjob-dataflowJob-8-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 1 | Time: 2022-06-06T20:04:05.012 | Thread: 180 | DATAFLOW PROCESS [INFO ] 2022-06-06 20:04:05,012 --elasticjob-simpleJob-9-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootSimpleJob] Item: 2 | Time: 2022-06-06T20:04:05.012 | Thread: 183 | SIMPLE [INFO ] 2022-06-06 20:04:10,016 --elasticjob-dataflowJob-10-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 0 | Time: 2022-06-06T20:04:10.016 | Thread: 184 | DATAFLOW FETCH [INFO ] 2022-06-06 20:04:10,016 --elasticjob-dataflowJob-11-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 1 | Time: 2022-06-06T20:04:10.016 | Thread: 187 | DATAFLOW FETCH [INFO ] 2022-06-06 20:04:10,016 --elasticjob-simpleJob-11-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootSimpleJob] Item: 1 | Time: 2022-06-06T20:04:10.016 | Thread: 188 | SIMPLE [INFO ] 2022-06-06 20:04:10,016 --elasticjob-dataflowJob-10-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 0 | Time: 2022-06-06T20:04:10.016 | Thread: 184 | DATAFLOW PROCESS [INFO ] 2022-06-06 20:04:10,016 --elasticjob-simpleJob-10-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootSimpleJob] Item: 0 | Time: 2022-06-06T20:04:10.016 | Thread: 185 | SIMPLE [INFO ] 2022-06-06 20:04:10,016 --elasticjob-dataflowJob-11-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 1 | Time: 2022-06-06T20:04:10.016 | Thread: 187 | DATAFLOW PROCESS [INFO ] 2022-06-06 20:04:10,017 --elasticjob-simpleJob-12-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootSimpleJob] Item: 2 | Time: 2022-06-06T20:04:10.017 | Thread: 189 | SIMPLE [INFO ] 2022-06-06 20:04:10,017 --elasticjob-dataflowJob-12-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 2 | Time: 2022-06-06T20:04:10.017 | Thread: 190 | DATAFLOW FETCH [INFO ] 2022-06-06 20:04:10,017 --elasticjob-dataflowJob-12-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 2 | Time: 2022-06-06T20:04:10.017 | Thread: 190 | DATAFLOW PROCESS SCRIPT Job: {"jobName":"scriptJob","taskId":"scriptJob@-@0,1,2@-@READY@[email protected]@-@6275","shardingTotalCount":3,"jobParameter":"","shardingItem":0}SCRIPT Job: {"jobName":"scriptJob","taskId":"scriptJob@-@0,1,2@-@READY@[email protected]@-@6275","shardingTotalCount":3,"jobParameter":"","shardingItem":2}SCRIPT Job: {"jobName":"scriptJob","taskId":"scriptJob@-@0,1,2@-@READY@[email protected]@-@6275","shardingTotalCount":3,"jobParameter":"","shardingItem":1}[INFO ] 2022-06-06 20:04:15,014 --elasticjob-simpleJob-13-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootSimpleJob] Item: 0 | Time: 2022-06-06T20:04:15.014 | Thread: 200 | SIMPLE [INFO ] 2022-06-06 20:04:15,014 --elasticjob-dataflowJob-13-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 0 | Time: 2022-06-06T20:04:15.014 | Thread: 201 | DATAFLOW FETCH [INFO ] 2022-06-06 20:04:15,015 --elasticjob-dataflowJob-13-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 0 | Time: 2022-06-06T20:04:15.015 | Thread: 201 | DATAFLOW PROCESS [INFO ] 2022-06-06 20:04:15,015 --elasticjob-dataflowJob-14-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 1 | Time: 2022-06-06T20:04:15.015 | Thread: 203 | DATAFLOW FETCH [INFO ] 2022-06-06 20:04:15,015 --elasticjob-simpleJob-15-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootSimpleJob] Item: 2 | Time: 2022-06-06T20:04:15.015 | Thread: 204 | SIMPLE [INFO ] 2022-06-06 20:04:15,015 --elasticjob-simpleJob-14-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootSimpleJob] Item: 1 | Time: 2022-06-06T20:04:15.015 | Thread: 202 | SIMPLE [INFO ] 2022-06-06 20:04:15,015 --elasticjob-dataflowJob-14-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 1 | Time: 2022-06-06T20:04:15.015 | Thread: 203 | DATAFLOW PROCESS [INFO ] 2022-06-06 20:04:15,015 --elasticjob-dataflowJob-15-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 2 | Time: 2022-06-06T20:04:15.015 | Thread: 205 | DATAFLOW FETCH [INFO ] 2022-06-06 20:04:15,015 --elasticjob-dataflowJob-15-- [tech.pdai.springboot.elasticjob.lite.job.SpringBootDataflowJob] Item: 2 | Time: 2022-06-06T20:04:15.015 | Thread: 205 | DATAFLOW PROCESS

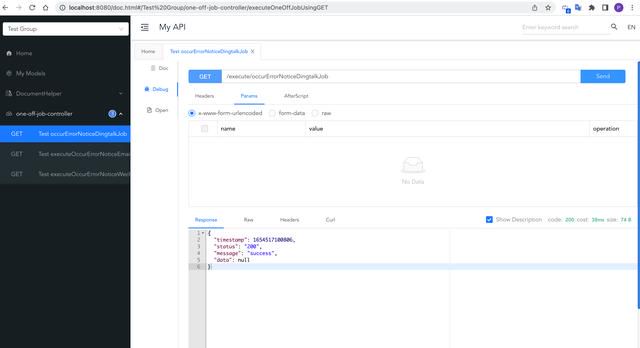

OneOff的任務，通過controller api訪問

由於這裡沒有配置正確的，這裡會報異常日誌

[INFO ] 2022-06-06 20:05:00,818 --Curator-SafeNotifyService-0-- [org.quartz.core.QuartzScheduler] Scheduler occurErrorNoticeDingtalkJob_$_NON_CLUSTERED started. [ERROR] 2022-06-06 20:05:00,908 --elasticjob-occurErrorNoticeDingtalkJob-3-- [org.apache.shardingsphere.elasticjob.error.handler.dingtalk.DingtalkJobErrorHandler] An exception has occurred in Job 'occurErrorNoticeDingtalkJob', but failed to send dingtalk because of java.lang.RuntimeException: An exception has occurred in Job, The parameter is Guangzhou at tech.pdai.springboot.elasticjob.lite.job.SpringBootOccurErrorNoticeDingtalkJob.execute(SpringBootOccurErrorNoticeDingtalkJob.java:29) at org.apache.shardingsphere.elasticjob.simple.executor.SimpleJobExecutor.process(SimpleJobExecutor.java:33) at org.apache.shardingsphere.elasticjob.simple.executor.SimpleJobExecutor.process(SimpleJobExecutor.java:29) at org.apache.shardingsphere.elasticjob.executor.ElasticJobExecutor.process(ElasticJobExecutor.java:172) at org.apache.shardingsphere.elasticjob.executor.ElasticJobExecutor.lambda$process$0(ElasticJobExecutor.java:153) at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511) at com.google.common.util.concurrent.TrustedListenableFutureTask$TrustedFutureInterruptibleTask.runInterruptibly(TrustedListenableFutureTask.java:125) at com.google.common.util.concurrent.InterruptibleTask.run(InterruptibleTask.java:57) at com.google.common.util.concurrent.TrustedListenableFutureTask.run(TrustedListenableFutureTask.java:78) at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) at java.lang.Thread.run(Thread.java:748) Suppressed: org.apache.http.client.ClientProtocolException: null at org.apache.http.impl.client.InternalHttpClient.doExecute(InternalHttpClient.java:187) at org.apache.http.impl.client.CloseableHttpClient.execute(CloseableHttpClient.java:83) at org.apache.http.impl.client.CloseableHttpClient.execute(CloseableHttpClient.java:108) at org.apache.shardingsphere.elasticjob.error.handler.dingtalk.DingtalkJobErrorHandler.handleException(DingtalkJobErrorHandler.java:80) at org.apache.shardingsphere.elasticjob.executor.ElasticJobExecutor.process(ElasticJobExecutor.java:183) ... 8 common frames omitted Caused by: org.apache.http.ProtocolException: Target host is not specified at org.apache.http.impl.conn.DefaultRoutePlanner.determineRoute(DefaultRoutePlanner.java:71) at org.apache.http.impl.client.InternalHttpClient.determineRoute(InternalHttpClient.java:125) at org.apache.http.impl.client.InternalHttpClient.doExecute(InternalHttpClient.java:184) ... 12 common frames omitted[ERROR] 2022-06-06 20:05:00,908 --elasticjob-occurErrorNoticeDingtalkJob-2-- [org.apache.shardingsphere.elasticjob.error.handler.dingtalk.DingtalkJobErrorHandler] An exception has occurred in Job 'occurErrorNoticeDingtalkJob', but failed to send dingtalk because of java.lang.RuntimeException: An exception has occurred in Job, The parameter is Shanghai at tech.pdai.springboot.elasticjob.lite.job.SpringBootOccurErrorNoticeDingtalkJob.execute(SpringBootOccurErrorNoticeDingtalkJob.java:29) at org.apache.shardingsphere.elasticjob.simple.executor.SimpleJobExecutor.process(SimpleJobExecutor.java:33) at org.apache.shardingsphere.elasticjob.simple.executor.SimpleJobExecutor.process(SimpleJobExecutor.java:29) at org.apache.shardingsphere.elasticjob.executor.ElasticJobExecutor.process(ElasticJobExecutor.java:172) at org.apache.shardingsphere.elasticjob.executor.ElasticJobExecutor.lambda$process$0(ElasticJobExecutor.java:153) at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511) at com.google.common.util.concurrent.TrustedListenableFutureTask$TrustedFutureInterruptibleTask.runInterruptibly(TrustedListenableFutureTask.java:125) at com.google.common.util.concurrent.InterruptibleTask.run(InterruptibleTask.java:57) at com.google.common.util.concurrent.TrustedListenableFutureTask.run(TrustedListenableFutureTask.java:78) at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) at java.lang.Thread.run(Thread.java:748) Suppressed: org.apache.http.client.ClientProtocolException: null at org.apache.http.impl.client.InternalHttpClient.doExecute(InternalHttpClient.java:187) at org.apache.http.impl.client.CloseableHttpClient.execute(CloseableHttpClient.java:83) at org.apache.http.impl.client.CloseableHttpClient.execute(CloseableHttpClient.java:108) at org.apache.shardingsphere.elasticjob.error.handler.dingtalk.DingtalkJobErrorHandler.handleException(DingtalkJobErrorHandler.java:80) at org.apache.shardingsphere.elasticjob.executor.ElasticJobExecutor.process(ElasticJobExecutor.java:183) ... 8 common frames omitted Caused by: org.apache.http.ProtocolException: Target host is not specified at org.apache.http.impl.conn.DefaultRoutePlanner.determineRoute(DefaultRoutePlanner.java:71) at org.apache.http.impl.client.InternalHttpClient.determineRoute(InternalHttpClient.java:125) at org.apache.http.impl.client.InternalHttpClient.doExecute(InternalHttpClient.java:184) ... 12 common frames omitted[ERROR] 2022-06-06 20:05:00,908 --elasticjob-occurErrorNoticeDingtalkJob-1-- [org.apache.shardingsphere.elasticjob.error.handler.dingtalk.DingtalkJobErrorHandler] An exception has occurred in Job 'occurErrorNoticeDingtalkJob', but failed to send dingtalk because of java.lang.RuntimeException: An exception has occurred in Job, The parameter is Beijing at tech.pdai.springboot.elasticjob.lite.job.SpringBootOccurErrorNoticeDingtalkJob.execute(SpringBootOccurErrorNoticeDingtalkJob.java:29) at org.apache.shardingsphere.elasticjob.simple.executor.SimpleJobExecutor.process(SimpleJobExecutor.java:33) at org.apache.shardingsphere.elasticjob.simple.executor.SimpleJobExecutor.process(SimpleJobExecutor.java:29) at org.apache.shardingsphere.elasticjob.executor.ElasticJobExecutor.process(ElasticJobExecutor.java:172) at org.apache.shardingsphere.elasticjob.executor.ElasticJobExecutor.lambda$process$0(ElasticJobExecutor.java:153) at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511) at com.google.common.util.concurrent.TrustedListenableFutureTask$TrustedFutureInterruptibleTask.runInterruptibly(TrustedListenableFutureTask.java:125) at com.google.common.util.concurrent.InterruptibleTask.run(InterruptibleTask.java:57) at com.google.common.util.concurrent.TrustedListenableFutureTask.run(TrustedListenableFutureTask.java:78) at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) at java.lang.Thread.run(Thread.java:748) Suppressed: org.apache.http.client.ClientProtocolException: null at org.apache.http.impl.client.InternalHttpClient.doExecute(InternalHttpClient.java:187) at org.apache.http.impl.client.CloseableHttpClient.execute(CloseableHttpClient.java:83) at org.apache.http.impl.client.CloseableHttpClient.execute(CloseableHttpClient.java:108) at org.apache.shardingsphere.elasticjob.error.handler.dingtalk.DingtalkJobErrorHandler.handleException(DingtalkJobErrorHandler.java:80) at org.apache.shardingsphere.elasticjob.executor.ElasticJobExecutor.process(ElasticJobExecutor.java:183) ... 8 common frames omitted Caused by: org.apache.http.ProtocolException: Target host is not specified at org.apache.http.impl.conn.DefaultRoutePlanner.determineRoute(DefaultRoutePlanner.java:71) at org.apache.http.impl.client.InternalHttpClient.determineRoute(InternalHttpClient.java:125) at org.apache.http.impl.client.InternalHttpClient.doExecute(InternalHttpClient.java:184) ... 12 common frames omitted

ElasticJob 也提供了UI控制臺的功能，包括作業操作和作業歷史。可以在這裡下載。

比如這裡，我下載了apache-shardingsphere-elasticjob-3.0.1-lite-ui-bin.tar.gz。需要通過如下工具解壓，因為某些解壓縮工具在解壓ShardingSphere-ElasticJob-UI二進位包時可能將文件名截斷，導致找不到某些類。

tar zxvf apache-shardingsphere-elasticjob-${RELEASE.VERSION}-lite-ui-bin.tar.gz

解壓完以後，在conf目錄配置JDBC（只需要與application-xx.yml中的datasource配置一致即可， 比如這裡我們配置h2內存資料庫）

server.port=8088auth.root_username=rootauth.root_password=rootauth.guest_username=guestauth.guest_password=guestauth.token_expires_after_seconds=3600spring.datasource.default.driver-class-name=org.h2.Driverspring.datasource.default.url=jdbc:h2:mem:job_event_storage # 看這裡spring.datasource.default.username=saspring.datasource.default.password=spring.jpa.show-sql=false

配置完後，啟動

pdai@MacBook-Pro apache-shardingsphere-elasticjob-3.0.1-lite-ui-bin % vi bin/start.sh pdai@MacBook-Pro apache-shardingsphere-elasticjob-3.0.1-lite-ui-bin % bin/start.sh Starting the ShardingSphere-ElasticJob-UI ...Please check the STDOUT file: /Users/pdai/apache-shardingsphere-elasticjob-3.0.1-lite-ui-bin/logs/stdout.logpdai@MacBook-Pro apache-shardingsphere-elasticjob-3.0.1-lite-ui-bin % cat logs/stdout.log20:20:30,474 |-INFO in ch.qos.logback.classic.LoggerContext[default] - Could NOT find resource [logback.groovy]20:20:30,475 |-INFO in ch.qos.logback.classic.LoggerContext[default] - Could NOT find resource [logback-test.xml]20:20:30,476 |-INFO in ch.qos.logback.classic.LoggerContext[default] - Found resource [logback.xml] at [file:/Users/pdai/apache-shardingsphere-elasticjob-3.0.1-lite-ui-bin/conf/logback.xml]20:20:30,476 |-WARN in ch.qos.logback.classic.LoggerContext[default] - Resource [logback.xml] occurs multiple times on the classpath.20:20:30,476 |-WARN in ch.qos.logback.classic.LoggerContext[default] - Resource [logback.xml] occurs at [file:/Users/pdai/apache-shardingsphere-elasticjob-3.0.1-lite-ui-bin/conf/logback.xml]20:20:30,476 |-WARN in ch.qos.logback.classic.LoggerContext[default] - Resource [logback.xml] occurs at [jar:file:/Users/pdai/apache-shardingsphere-elasticjob-3.0.1-lite-ui-bin/lib/shardingsphere-elasticjob-lite-ui-bin-distribution-3.0.1.jar!/logback.xml]20:20:30,476 |-WARN in ch.qos.logback.classic.LoggerContext[default] - Resource [logback.xml] occurs at [jar:file:/Users/pdai/apache-shardingsphere-elasticjob-3.0.1-lite-ui-bin/lib/shardingsphere-elasticjob-lite-ui-backend-3.0.1.jar!/logback.xml]20:20:30,588 |-INFO in ch.qos.logback.classic.joran.action.ConfigurationAction - debug attribute not set20:20:30,588 |-INFO in ch.qos.logback.core.joran.action.AppenderAction - About to instantiate appender of type [ch.qos.logback.core.ConsoleAppender]20:20:30,593 |-INFO in ch.qos.logback.core.joran.action.AppenderAction - Naming appender as [console]20:20:30,598 |-INFO in ch.qos.logback.core.joran.action.NestedComplexPropertyIA - Assuming default type [ch.qos.logback.classic.encoder.PatternLayoutEncoder] for [encoder] property20:20:30,653 |-INFO in ch.qos.logback.classic.joran.action.LoggerAction - Setting level of logger [org.apache.shardingsphere] to INFO20:20:30,653 |-INFO in ch.qos.logback.classic.joran.action.LoggerAction - Setting additivity of logger [org.apache.shardingsphere] to false20:20:30,653 |-INFO in ch.qos.logback.core.joran.action.AppenderRefAction - Attaching appender named [console] to Logger[org.apache.shardingsphere]20:20:30,653 |-INFO in ch.qos.logback.classic.joran.action.LevelAction - ROOT level set to INFO20:20:30,653 |-INFO in ch.qos.logback.core.joran.action.AppenderRefAction - Attaching appender named [console] to Logger[ROOT]20:20:30,653 |-INFO in ch.qos.logback.classic.joran.action.ConfigurationAction - End of configuration.20:20:30,656 |-INFO in ch.qos.logback.classic.joran.JoranConfigurator@3835c46 - Registering current configuration as safe fallback point . ____ _ __ _ _ /\\ / ___'_ __ _ _(_)_ __ __ _ \ \ \ \( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \ \\/ ___)| |_)| | | | | || (_| | ) ) ) ) ' |____| .__|_| |_|_| |_\__, | / / / / =========|_|==============|___/=/_/_/_/ :: Spring Boot :: (v1.5.21.RELEASE)[INFO ] 20:20:31.061 [main] o.a.s.elasticjob.lite.ui.Bootstrap - Starting Bootstrap v3.0.1 on MacBook-Pro.local with PID 7642 (/Users/pdai/apache-shardingsphere-elasticjob-3.0.1-lite-ui-bin/lib/shardingsphere-elasticjob-lite-ui-backend-3.0.1.jar started by pdai in /Users/pdai/apache-shardingsphere-elasticjob-3.0.1-lite-ui-bin)[INFO ] 20:20:31.063 [main] o.a.s.elasticjob.lite.ui.Bootstrap - No active profile set, falling back to default profiles: default[INFO ] 20:20:31.105 [main] o.s.b.c.e.AnnotationConfigEmbeddedWebApplicationContext - Refreshing org.springframework.boot.context.embedded.AnnotationConfigEmbeddedWebApplicationContext@5454d35e: startup date [Mon Jun 06 20:20:31 CST 2022]; root of context hierarchyWARNING: An illegal reflective access operation has occurredWARNING: Illegal reflective access by org.springframework.cglib.core.ReflectUtils$1 (file:/Users/pdai/apache-shardingsphere-elasticjob-3.0.1-lite-ui-bin/lib/spring-core-4.3.24.RELEASE.jar) to method java.lang.ClassLoader.defineClass(java.lang.String,byte[],int,int,java.security.ProtectionDomain)WARNING: Please consider reporting this to the maintainers of org.springframework.cglib.core.ReflectUtils$1WARNING: Use --illegal-access=warn to enable warnings of further illegal reflective access operationsWARNING: All illegal access operations will be denied in a future release[INFO ] 20:20:32.093 [main] o.s.c.s.PostProcessorRegistrationDelegate$BeanPostProcessorChecker - Bean 'org.springframework.transaction.annotation.ProxyTransactionManagementConfiguration' of type [org.springframework.transaction.annotation.ProxyTransactionManagementConfiguration$$EnhancerBySpringCGLIB$$89f6cb55] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying)[INFO ] 20:20:32.367 [main] o.s.b.c.e.t.TomcatEmbeddedServletContainer - Tomcat initialized with port(s): 8088 (http)[INFO ] 20:20:32.384 [main] o.a.coyote.http11.Http11NioProtocol - Initializing ProtocolHandler ["http-nio-8088"][INFO ] 20:20:32.407 [main] o.a.catalina.core.StandardService - Starting service [Tomcat][INFO ] 20:20:32.408 [main] o.a.catalina.core.StandardEngine - Starting Servlet Engine: Apache Tomcat/8.5.40[INFO ] 20:20:32.514 [localhost-startStop-1] o.a.c.c.C.[Tomcat].[localhost].[/] - Initializing Spring embedded WebApplicationContext[INFO ] 20:20:32.515 [localhost-startStop-1] o.s.web.context.ContextLoader - Root WebApplicationContext: initialization completed in 1417 ms[INFO ] 20:20:32.657 [localhost-startStop-1] o.s.b.w.s.FilterRegistrationBean - Mapping filter: 'characterEncodingFilter' to: [/*][INFO ] 20:20:32.657 [localhost-startStop-1] o.s.b.w.s.FilterRegistrationBean - Mapping filter: 'hiddenHttpMethodFilter' to: [/*][INFO ] 20:20:32.657 [localhost-startStop-1] o.s.b.w.s.FilterRegistrationBean - Mapping filter: 'httpPutFormContentFilter' to: [/*][INFO ] 20:20:32.658 [localhost-startStop-1] o.s.b.w.s.FilterRegistrationBean - Mapping filter: 'requestContextFilter' to: [/*][INFO ] 20:20:32.658 [localhost-startStop-1] o.s.b.w.s.FilterRegistrationBean - Mapping filter: 'CORSFilter' to urls: [/api/*][INFO ] 20:20:32.658 [localhost-startStop-1] o.s.b.w.s.FilterRegistrationBean - Mapping filter: 'authenticationFilter' to urls: [/api/*][INFO ] 20:20:32.658 [localhost-startStop-1] o.s.b.w.s.ServletRegistrationBean - Mapping servlet: 'dispatcherServlet' to [/][INFO ] 20:20:32.990 [main] o.s.o.j.LocalContainerEntityManagerFactoryBean - Building JPA container EntityManagerFactory for persistence unit 'default'[WARN ] 20:20:33.086 [main] openjpa.Runtime - The configuration property named "openjpa.ClassLoadEnhancement" was not recognized and will be ignored, although the name closely matches a valid property called "openjpa.PostLoadOnMerge".[WARN ] 20:20:33.164 [main] openjpa.Runtime - The configuration property named "openjpa.ClassLoadEnhancement" was not recognized and will be ignored, although the name closely matches a valid property called "openjpa.PostLoadOnMerge".[WARN ] 20:20:33.179 [main] openjpa.Runtime - An error occurred while registering a ClassTransformer with PersistenceUnitInfo: name 'default', root URL [file:/Users/pdai/apache-shardingsphere-elasticjob-3.0.1-lite-ui-bin/lib/shardingsphere-elasticjob-lite-ui-backend-3.0.1.jar]. The error has been consumed. To see it, set your openjpa.Runtime log level to TRACE. Load-time class transformation will not be available.[INFO ] 20:20:33.193 [main] o.s.o.j.LocalContainerEntityManagerFactoryBean - Initialized JPA EntityManagerFactory for persistence unit 'default'[INFO ] 20:20:33.273 [main] openjpa.jdbc.JDBC - Using dictionary class "org.apache.openjpa.jdbc.sql.H2Dictionary" (H2 1.4.196 (2017-06-10) ,H2 JDBC Driver 1.4.196 (2017-06-10)).[INFO ] 20:20:33.322 [main] openjpa.jdbc.JDBC - Connected to H2 version 1.4 using JDBC driver H2 JDBC Driver version 1.4.196 (2017-06-10).[INFO ] 20:20:33.326 [main] openjpa.Runtime - Starting OpenJPA 3.1.2[WARN ] 20:20:33.531 [main] openjpa.Enhance - Creating subclass for "[class org.apache.shardingsphere.elasticjob.lite.ui.domain.TaskResultStatistics, class org.apache.shardingsphere.elasticjob.lite.ui.domain.JobRegisterStatistics, class org.apache.shardingsphere.elasticjob.lite.ui.domain.JobRunningStatistics, class org.apache.shardingsphere.elasticjob.lite.ui.domain.JobStatusTraceLog, class org.apache.shardingsphere.elasticjob.lite.ui.domain.JobExecutionLog, class org.apache.shardingsphere.elasticjob.lite.ui.domain.TaskRunningStatistics]". This means that your application will be less efficient and will consume more memory than it would if you ran the OpenJPA enhancer. Additionally, lazy loading will not be available for one-to-one and many-to-one persistent attributes in types using field access; they will be loaded eagerly instead.[INFO ] 20:20:34.321 [main] o.s.w.s.m.m.a.RequestMappingHandlerAdapter - Looking for @ControllerAdvice: org.springframework.boot.context.embedded.AnnotationConfigEmbeddedWebApplicationContext@5454d35e: startup date [Mon Jun 06 20:20:31 CST 2022]; root of context hierarchy[INFO ] 20:20:34.374 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/jobs/count],methods=[GET]}" onto public int org.apache.shardingsphere.elasticjob.lite.ui.web.controller.JobOperationController.getJobsTotalCount[INFO ] 20:20:34.375 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/jobs/getAllJobsBriefInfo],methods=[GET]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult<java.util.Collection> org.apache.shardingsphere.elasticjob.lite.ui.web.controller.JobOperationController.getAllJobsBriefInfo[INFO ] 20:20:34.375 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/jobs/{jobName}/shutdown],methods=[POST]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.JobOperationController.shutdownJob(java.lang.String)[INFO ] 20:20:34.376 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/jobs/{jobName}/sharding],methods=[GET]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult<java.util.Collection> org.apache.shardingsphere.elasticjob.lite.ui.web.controller.JobOperationController.getShardingInfo(java.lang.String)[INFO ] 20:20:34.376 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/jobs/{jobName}/sharding/{item}/disable],methods=[POST]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.JobOperationController.disableSharding(java.lang.String,java.lang.String)[INFO ] 20:20:34.376 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/jobs/{jobName}/sharding/{item}/enable],methods=[POST]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.JobOperationController.enableSharding(java.lang.String,java.lang.String)[INFO ] 20:20:34.376 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/jobs/{jobName}/trigger],methods=[POST]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.JobOperationController.triggerJob(java.lang.String)[INFO ] 20:20:34.376 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/jobs/{jobName}/disable],methods=[POST]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.JobOperationController.disableJob(java.lang.String)[INFO ] 20:20:34.376 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/jobs/{jobName}/enable],methods=[POST]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.JobOperationController.enableJob(java.lang.String)[INFO ] 20:20:34.378 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/event-trace/status/jobNames || /api/event-trace/status/jobNames/{jobNamePrefix:. }],methods=[GET]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult<java.util.List> org.apache.shardingsphere.elasticjob.lite.ui.web.controller.EventTraceHistoryController.findJobNamesByPrefixInStatusTraceLog(java.lang.String)[INFO ] 20:20:34.378 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/event-trace/execution],methods=[POST]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult<org.apache.shardingsphere.elasticjob.lite.ui.dto.response.BasePageResponse> org.apache.shardingsphere.elasticjob.lite.ui.web.controller.EventTraceHistoryController.findJobExecutionEvents(org.apache.shardingsphere.elasticjob.lite.ui.dto.request.FindJobExecutionEventsRequest)[INFO ] 20:20:34.378 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/event-trace/execution/jobNames || /api/event-trace/execution/jobNames/{jobNamePrefix:. }],methods=[GET]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult<java.util.List> org.apache.shardingsphere.elasticjob.lite.ui.web.controller.EventTraceHistoryController.findJobNamesByPrefix(java.lang.String)[INFO ] 20:20:34.378 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/event-trace/execution/ip || /api/event-trace/execution/ip/{ipPrefix:. }],methods=[GET]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult<java.util.List> org.apache.shardingsphere.elasticjob.lite.ui.web.controller.EventTraceHistoryController.findIpByPrefix(java.lang.String)[INFO ] 20:20:34.379 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/event-trace/status],methods=[POST]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult<org.apache.shardingsphere.elasticjob.lite.ui.dto.response.BasePageResponse> org.apache.shardingsphere.elasticjob.lite.ui.web.controller.EventTraceHistoryController.findJobStatusTraceEvents(org.apache.shardingsphere.elasticjob.lite.ui.dto.request.FindJobStatusTraceEventsRequest)[INFO ] 20:20:34.382 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/servers/count],methods=[GET]}" onto public int org.apache.shardingsphere.elasticjob.lite.ui.web.controller.ServerOperationController.getServersTotalCount[INFO ] 20:20:34.382 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/servers/getAllServersBriefInfo],methods=[GET]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult<java.util.Collection> org.apache.shardingsphere.elasticjob.lite.ui.web.controller.ServerOperationController.getAllServersBriefInfo[INFO ] 20:20:34.382 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/servers/{serverIp}/disable],methods=[POST]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.ServerOperationController.disableServer(java.lang.String)[INFO ] 20:20:34.382 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/servers/{serverIp}/enable],methods=[POST]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.ServerOperationController.enableServer(java.lang.String)[INFO ] 20:20:34.383 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/servers/{serverIp}/shutdown],methods=[POST]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.ServerOperationController.shutdownServer(java.lang.String)[INFO ] 20:20:34.383 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/servers/{serverIp:. }],methods=[DELETE]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.ServerOperationController.removeServer(java.lang.String)[INFO ] 20:20:34.383 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/servers/{serverIp}/jobs/{jobName}/disable],methods=[POST]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.ServerOperationController.disableServerJob(java.lang.String,java.lang.String)[INFO ] 20:20:34.383 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/servers/{serverIp}/jobs/{jobName}/enable],methods=[POST]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.ServerOperationController.enableServerJob(java.lang.String,java.lang.String)[INFO ] 20:20:34.383 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/servers/{serverIp}/jobs/{jobName}/shutdown],methods=[POST]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.ServerOperationController.shutdownServerJob(java.lang.String,java.lang.String)[INFO ] 20:20:34.383 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/servers/{serverIp}/jobs/{jobName:. }],methods=[DELETE]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.ServerOperationController.removeServerJob(java.lang.String,java.lang.String)[INFO ] 20:20:34.384 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/servers/{serverIp}/jobs],methods=[GET]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult<java.util.Collection> org.apache.shardingsphere.elasticjob.lite.ui.web.controller.ServerOperationController.getJobs(java.lang.String)[INFO ] 20:20:34.387 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/registry-center/activated],methods=[GET]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.RegistryCenterController.activated[INFO ] 20:20:34.387 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/registry-center/add],methods=[POST]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.RegistryCenterController.add(org.apache.shardingsphere.elasticjob.lite.ui.domain.RegistryCenterConfiguration)[INFO ] 20:20:34.387 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/registry-center/load],methods=[GET]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult<java.util.Collection> org.apache.shardingsphere.elasticjob.lite.ui.web.controller.RegistryCenterController.load(javax.servlet.http.HttpServletRequest)[INFO ] 20:20:34.387 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/registry-center],methods=[DELETE]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.RegistryCenterController.delete(org.apache.shardingsphere.elasticjob.lite.ui.domain.RegistryCenterConfiguration)[INFO ] 20:20:34.387 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/registry-center/connect],methods=[POST]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.RegistryCenterController.connect(org.apache.shardingsphere.elasticjob.lite.ui.domain.RegistryCenterConfiguration,javax.servlet.http.HttpServletRequest)[INFO ] 20:20:34.389 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/data-source/drivers],methods=[GET]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult<java.util.Collection> org.apache.shardingsphere.elasticjob.lite.ui.web.controller.EventTraceDataSourceController.availableDrivers[INFO ] 20:20:34.389 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/data-source/connectTest],methods=[POST]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.EventTraceDataSourceController.connectTest(org.apache.shardingsphere.elasticjob.lite.ui.domain.EventTraceDataSourceConfiguration,javax.servlet.http.HttpServletRequest)[INFO ] 20:20:34.389 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/data-source/activated],methods=[GET]}" onto public boolean org.apache.shardingsphere.elasticjob.lite.ui.web.controller.EventTraceDataSourceController.activated(javax.servlet.http.HttpServletRequest)[INFO ] 20:20:34.389 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/data-source/add],methods=[POST]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.EventTraceDataSourceController.add(org.apache.shardingsphere.elasticjob.lite.ui.domain.EventTraceDataSourceConfiguration)[INFO ] 20:20:34.390 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/data-source/load],methods=[GET]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult<java.util.Collection> org.apache.shardingsphere.elasticjob.lite.ui.web.controller.EventTraceDataSourceController.load(javax.servlet.http.HttpServletRequest)[INFO ] 20:20:34.390 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/data-source],methods=[DELETE]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.EventTraceDataSourceController.delete(org.apache.shardingsphere.elasticjob.lite.ui.domain.EventTraceDataSourceConfiguration)[INFO ] 20:20:34.390 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/data-source/connect],methods=[POST]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.EventTraceDataSourceController.connect(org.apache.shardingsphere.elasticjob.lite.ui.domain.EventTraceDataSourceConfiguration,javax.servlet.http.HttpServletRequest)[INFO ] 20:20:34.392 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/jobs/config/{jobName:. }],methods=[GET]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.JobConfigController.getJobConfig(java.lang.String)[INFO ] 20:20:34.392 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/jobs/config],methods=[PUT]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.JobConfigController.updateJobConfig(org.apache.shardingsphere.elasticjob.infra.pojo.JobConfigurationPOJO)[INFO ] 20:20:34.392 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/api/jobs/config/{jobName:. }],methods=[DELETE]}" onto public org.apache.shardingsphere.elasticjob.lite.ui.web.response.ResponseResult org.apache.shardingsphere.elasticjob.lite.ui.web.controller.JobConfigController.removeJob(java.lang.String)[INFO ] 20:20:34.393 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/error],produces=[text/html]}" onto public org.springframework.web.servlet.ModelAndView org.springframework.boot.autoconfigure.web.BasicErrorController.errorHtml(javax.servlet.http.HttpServletRequest,javax.servlet.http.HttpServletResponse)[INFO ] 20:20:34.393 [main] o.s.w.s.m.m.a.RequestMappingHandlerMapping - Mapped "{[/error]}" onto public org.springframework.http.ResponseEntity<java.util.Map> org.springframework.boot.autoconfigure.web.BasicErrorController.error(javax.servlet.http.HttpServletRequest)[INFO ] 20:20:34.412 [main] o.s.w.s.h.SimpleUrlHandlerMapping - Mapped URL path [/webjars/**] onto handler of type [class org.springframework.web.servlet.resource.ResourceHttpRequestHandler][INFO ] 20:20:34.412 [main] o.s.w.s.h.SimpleUrlHandlerMapping - Mapped URL path [/**] onto handler of type [class org.springframework.web.servlet.resource.ResourceHttpRequestHandler][INFO ] 20:20:34.422 [main] o.s.w.s.m.m.a.ExceptionHandlerExceptionResolver - Detected @ExceptionHandler methods in restExceptionHandler[INFO ] 20:20:34.438 [main] o.s.w.s.h.SimpleUrlHandlerMapping - Mapped URL path [/**/favicon.ico] onto handler of type [class org.springframework.web.servlet.resource.ResourceHttpRequestHandler][INFO ] 20:20:34.453 [main] o.s.b.a.w.WebMvcAutoConfiguration$WelcomePageHandlerMapping - Adding welcome page: class path resource [public/index.html][INFO ] 20:20:34.624 [main] o.s.j.e.a.AnnotationMBeanExporter - Registering beans for JMX exposure on startup[INFO ] 20:20:34.634 [main] o.a.coyote.http11.Http11NioProtocol - Starting ProtocolHandler ["http-nio-8088"][INFO ] 20:20:34.655 [main] o.a.tomcat.util.net.NioSelectorPool - Using a shared selector for servlet write/read[INFO ] 20:20:34.666 [main] o.s.b.c.e.t.TomcatEmbeddedServletContainer - Tomcat started on port(s): 8088 (http)[INFO ] 20:20:34.670 [main] o.a.s.elasticjob.lite.ui.Bootstrap - Started Bootstrap in 3.898 seconds (JVM running for 4.52)

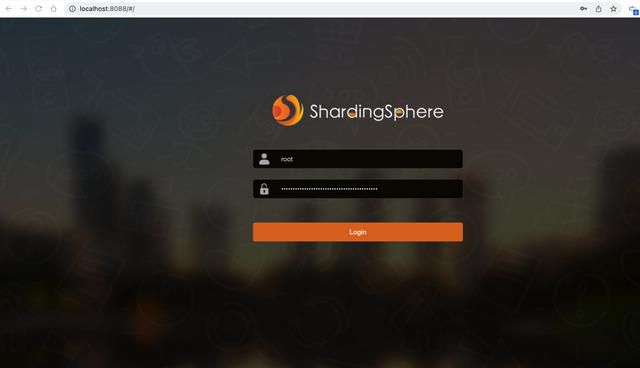

打開http://localhost:8088，輸入我們配置的root/root帳號

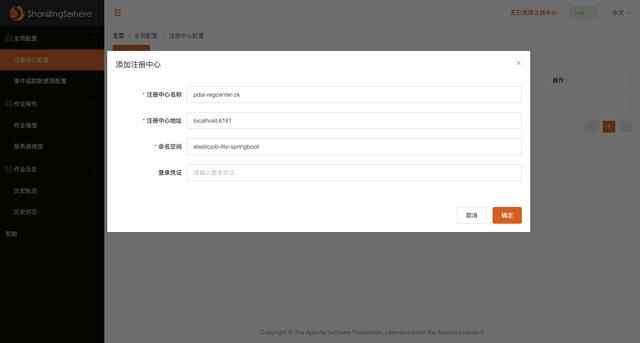

配置zk

配置數據源

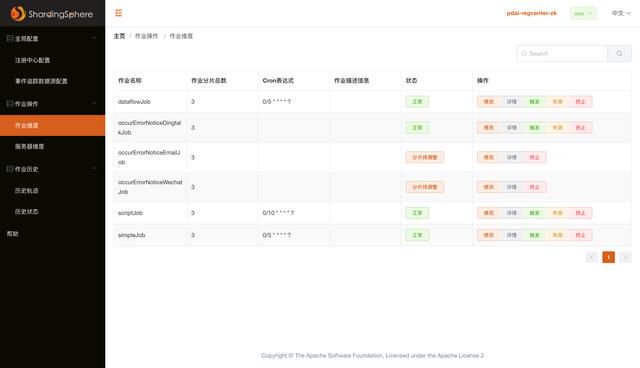

作業維度

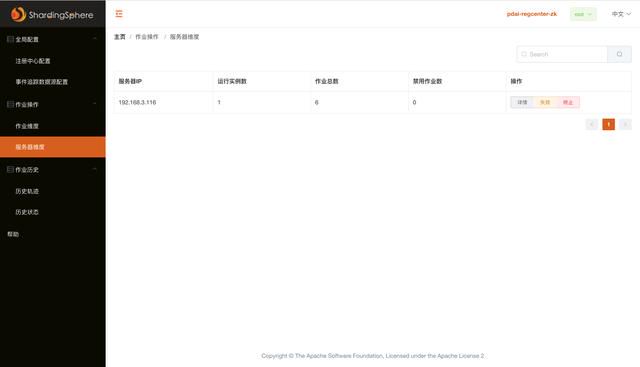

伺服器維度

作業歷史本質上就是從H2中獲取數據，你也可以訪問H2-Console查看

歷史軌跡

歷史狀態

https://shardingsphere.apache.org/elasticjob/index_zh.html

https://shardingsphere.apache.org/elasticjob/current/cn/faq/
